Product Details:
|
| Product Name: | Mat Sewing Machine | Number Of Needle: | Single Needle |
|---|---|---|---|
| Max. Sewing Speed: | 2200(r.p.m) | Max.Stitch Length: | 0-10.5mm |
| Needle Size: | DP*17(21#) | Mechanical Configuration: | Cylinder Bed |
| Working Space: | 250*110mm | Condotion: | New |
| High Light: | DP17 Football Single Needle Sewing Machine,250*110mm Single Needle Sewing Machine,220V DP17 sewing machine |
||

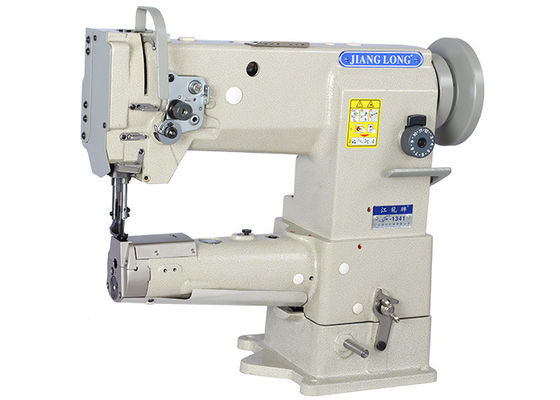

Industrial High Speed Single Needle Compound Feed Football Sewing Machine
Product introduce
This is a large-mouth sewing machine with a patented automatic oil supply. The machine adopts high-quality accessories with high wear resistance to increase the service life of the machine.
Product advantages
The design of automatic circulating oil supply and lubrication greatly reduces the wear of parts and reduces sewing noise. Super 10mm large needle pitch design, precise selection of spare parts and new adjustable brackets, durable.
Applications
Suitable for sewing heavy bags, handbags, backpacks, trolley cases, car mats, leather and other peripheral operations.
Product parameter
| Model | JL-1341 |
| product name | heavy duty industrial sewing machine |
| keyword | Luggage sewing machine,sewing machine indutrial |
| presser foot lift | 8mm (by hand) 13mm ( by knee ) |
| voltage | 220V |
| sewing material | leather ,fabric material |
Product details
Automatic circulating oil supply device
Improved on the basis of traditional manual oiling, equipped with a high-pressure oil pump to automatically supply oil to all parts of the machine to achieve free lubrication of all parts, greatly increase the service life of the machine and reduce parts wear.
Thread clamp
Adjust the tension of the upper thread
Backstitch handle
The reverse sewing handle is in a static state during sewing operation. If the sewing material needs to be reinforced, the sewing material will be fed back when the sewing material is pressed down.
Adjust the stitch length digital dial
The digital gauge dial can be adjusted in 1-6 steps. The operator can easily rotate the dial to achieve the ideal gauge. Turn clockwise to shorten the gauge, and vice versa.
Cylindrical sewing table
The cylindrical sewing table can sew difficult and complicated operations such as cylindrical bag openings that cannot be sewn by a flat sewing machine. The cylindrical diameter is 70mm.
