Home ProductsCylinder Bed Sewing Machine

White Vertical Hook 50KG Computer Driven Sewing Machine

Certification
China Dongguan Jianglong Intelligent Technology Co., Ltd. certification
China Dongguan Jianglong Intelligent Technology Co., Ltd. certification
Customer Reviews
I met Jianglong brand sewing machines at the exhibition and visited their factory. They have advanced R&D technology and very standardized production lines, and the service is very attentive. The most important thing is that the quality of their machines is very good, and my choice is correct, because when my workers use their machines, they praise

—— Kevin Hancey

I have bought Jianglong sewing machine for the second time. Because I need to expand my production line, I have to say that the car mats sewn by Jianglong's machine are very beautiful! Especially the model 6620 sewing machine, I like it very much!

—— James Alicea

Good products and good service . me choose Jianglong sewing machine. There is no problem in using the machine. I will buy another sewing machine of Jianglong brand in the near future.

—— Tim James

I have been cooperating with Jianglong Intelligent Technology Co., Ltd. for many years. I am very satisfied with the high-quality product quality and caring service. Jianglong's sewing machine is very stable and powerful when sewing thick materials. The machine's cost-effectiveness is very high, which is not inferior to well-known brand sewing mach

—— Pavlo Prannyk

I'm Online Chat Now

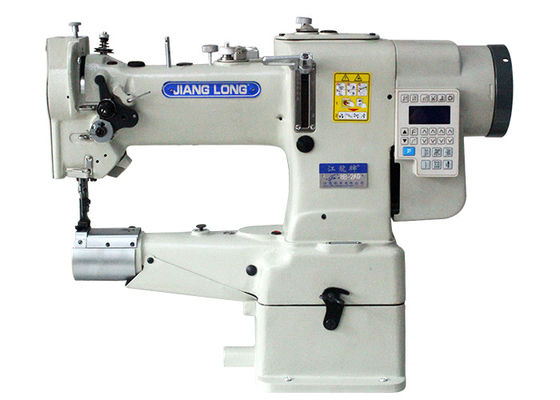

White Vertical Hook 50KG Computer Driven Sewing Machine

White Vertical Hook 50KG Computer Driven Sewing Machine
White Vertical Hook 50KG Computer Driven Sewing Machine White Vertical Hook 50KG Computer Driven Sewing Machine White Vertical Hook 50KG Computer Driven Sewing Machine White Vertical Hook 50KG Computer Driven Sewing Machine

Large Image :  White Vertical Hook 50KG Computer Driven Sewing Machine

Product Details:
Place of Origin: Dongguan,China
Brand Name: Jianglong
Model Number: JL-8BD-2A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 636.77 - 689 per set
Packaging Details: The inner packaging is a foam box, and the outer packaging is a carton
Delivery Time: 5-8 Work days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100000 Set per month

White Vertical Hook 50KG Computer Driven Sewing Machine

Description
Product Name: Single Needle Industrial Sewing Machine Max. Sewing Speed: 2200(r.p.m)
Max.Stitch Length: 0-8.0mm Diameter Of Cylinder Bed: 65mm
Needle Size: DP*17 (21#) Hook: Small Vertical Hook
Lubrication: Automatic Lubrication Working Space: 250×110mm
High Light:

50KG Computer Driven Sewing Machine

,

Jianglong Computer Driven Sewing Machine

,

50KG Cylinder Bed Sewing Machine





Patent Design Cylinder Bed Computer Direct Drive Integrated Industrial Sewing Machine



Product introduce

This is a computer-driven sewing machine with high-density and high wear resistance parts configuration. It has the functions of automatic winding core, up and down fixed needles, fully automatic circulating oil supply and lubrication design, which greatly reduces the wear of parts and reduces noise. The sliding rod type thread take-up and the vertical rotary hook hook the thread form a double-thread lock stitch. The upper and lower shafts are driven by a synchronous toothed belt. The presser foot, the feed dog, and the needle feed synchronously, and the lever type stitch length adjustment mechanism. High-pressure foot stroke, high-pressure foot lifting clearance and large stitch length, with cylindrical sewing table, suitable for seam sewing of school bags, travel backpacks, rucksacks, handbags, etc. Optional pneumatic presser foot lifting and reverse stitching device, which is efficient, energy-saving, environmentally friendly and silent.



Product advantages

It adopts the listed brand Powermax electronic control, 8mm large stitch design, 750W high-power motor, automatic presser foot lifting, automatic reinforcement sewing, automatic oil supply, fixed needle up and down, automatic winding, high-quality configuration, precise and rigorous selection of spare parts, The parts are purchased from regular large factories, and the quality is comparable to imported parts. The new black-gold steel tooth frame has more synchronized and accurate feeding, more stable and powerful stitching performance, and longer service life.



Parameter of machine

Model JL-8BD-2A
Number of Needle Single Needle
Max. Sewing Speed 2200(r.p.m)
Max.Stitch Length 0-8.0mm
Diameter of Cylinder Bed 65mm
Presser foot lift 8 mm (by hand ) 14 mm (by knee)
 Needle size DP*17 (21#)
Hook Small Vertical Hook
Lubrication Automatic lubrication
Working Space 250×110mm
motor Servo Direct Drive Motor
Mechanical Configuration Cylinder-bed
Feed Mechanism Compound Feed
Dimensions 65.5*31*60.2cm
Color White
N.W 50KG



Product Case
Suitable for leather, luggage, handbags.



Product details

1, LED lighting function, install the lighting lamp on the machine, it can work normally in poor light environment.

White Vertical Hook 50KG Computer Driven Sewing Machine 0




2. The pressure adjusting nut can adjust the pressure of the large and small presser feet; turn clockwise to increase the pressure when sewing thick materials, which can make the machine feed stably and the stitch length is even; on the contrary, when sewing thin materials, reduce the pressure and make the sewing material unavailable wrinkle.

White Vertical Hook 50KG Computer Driven Sewing Machine 1


3. Automatic circulating oil supply device, an improved version based on traditional manual oiling, equipped with a high-pressure oil pump to automatically supply oil to all parts of the machine to achieve free lubrication of all parts, greatly increase the service life of the machine and reduce parts wear.

White Vertical Hook 50KG Computer Driven Sewing Machine 2


4. The computer control panel .

White Vertical Hook 50KG Computer Driven Sewing Machine 3



FAQ



Q1. Is your company a factory or trading company?

A. We are sewing machine factory, we focus on excellence sewing machine.




Q2. How about your machine quality?
A. I cannot answer to you from our side. But our customer said to us our machine quality is good and use it about two years no change voice. After you use it, you will more understand our quality.



Q3.How about your price?
A.The price depends on model. Our price no expensive, but also no very cheap, in general, quality is better than price



Q4. Can I buy one or two pieces?
A. Normally, our MOQ is 50 pcs. However, we can send one or two pieces machine to your china agent and exported by yourself.



Q5. How can I get a quotation?

A. First please give us your email address and which machine are your interesting.
