Product Details:
|
| Product Name: | Cylinder Bed Sewing Machine | Max. Sewing Speed: | 2000(r.p.m) |
|---|---|---|---|
| Needle Size: | DP*17(21#) | Hook: | Vertical Standard Hook |
| Presser Foot Lift: | 8 Mm(by Hand) 13mm (by Knee) | Bed Size Diameter: | 70mm |
| Working Space: | 250*110mm | Condition: | New |
| High Light: | 37KG Automatic Trimming Sewing Machine,70mm Cylinder Bed Sewing Machine,37KG Cylinder Bed Sewing Machine |
||

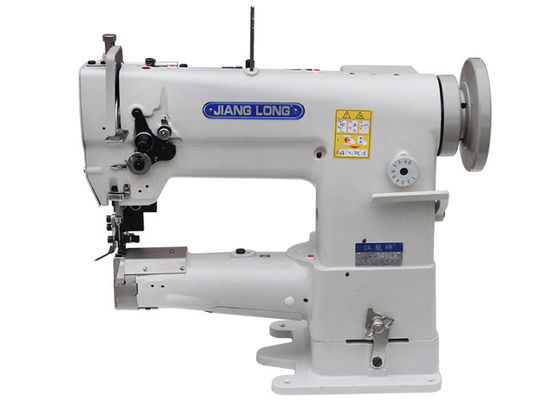

Industrial Walking Foot Cylinder Bed Compound Feed Sewing Machine for Leather
Product introduce
This is a leather sewing machine with a left trimming knife. This machine adopts a vertical rotary hook with a large thread volume, which reduces the frequency of replacing the bottom thread and improves work efficiency. The sliding rod is used to take up the thread to form a double-thread lock stitch. The upper and lower shafts are driven by a synchronous toothed belt. The presser foot, feed dog and needle are integrated and synchronized feeding, which makes the feeding more stable and smooth.
Product advantage
This sewing machine can cut off excess leftover material in a high-speed sewing cylinder, eliminating the need for manual trimming and increasing work efficiency.
Parameter of machine
| Model | JL-341-LD |
| Number of Needle | Single Needle |
| Max. Sewing Speed | 2200(r.p.m) |
| Max.Stitch Length | 0-9.5mm |
| Diameter of Cylinder Bed | 70mm |
| Presser foot lift | 8 mm(by hand ) 13 mm (by knee) |
| Needle size | DP*17(21#) |
| Hook | Vertical/Standard hook(26.4mm Core) |
| Lubrication | Manual lubrication |
| Working Space | 250*110mm |
| motor | Clutch Electric Motor, Electronic Energy-saving Machine |
| Mechanical Configuration | cylinder -bed |
| Feed Mechanism | Compound Feed |
| Dimensions | 58*29*61cm |
| Color | White |
| N.W | 37KG |
Product details
1. The knife holder on the left, the knife holder for fixing the trimming, the straw hat and the edge of the leather.
2. Cylindrical sewing table, the cylindrical sewing table can sew difficult and complicated operations such as cylindrical bag mouth that cannot be sewn by a flat sewing machine, with a diameter of 70mm.
3. Adjust the stitch length digital dial.
4. The back stitch handle and back stitch handle are in a static state during sewing operation. If you need to reinforce the sewing material, press down the back stitch handle and the sewing material will be fed back.
