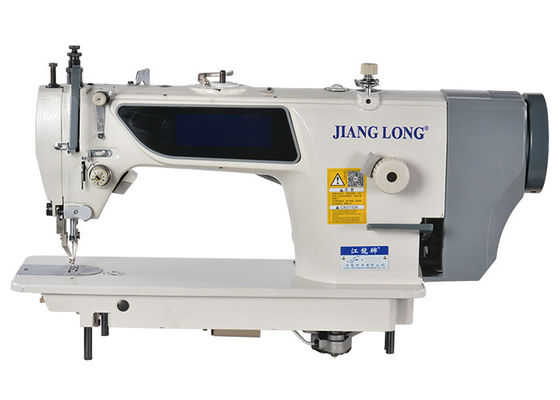

LED Lighting DP17 Large Hook Lockstitch Sewing Machine

LED Lighting DP17 Large Hook Lockstitch Sewing Machine
LED Lighting DP17 Large Hook Lockstitch Sewing Machine LED Lighting DP17 Large Hook Lockstitch Sewing Machine LED Lighting DP17 Large Hook Lockstitch Sewing Machine LED Lighting DP17 Large Hook Lockstitch Sewing Machine

Large Image :  LED Lighting DP17 Large Hook Lockstitch Sewing Machine

Product Details:
Place of Origin: Dongguan,China
Brand Name: Jianglong
Model Number: JL-0303DXL
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 485.3 - 514.71 per set
Packaging Details: The inner packaging is a foam box, and the outer packaging is a carton
Delivery Time: 5-8 Work days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100000 Set per month

LED Lighting DP17 Large Hook Lockstitch Sewing Machine

Description
Product Name: LeatherSewing Machine Max. Sewing Speed: 2500(r.p.m)
Max.Stitch Length: 0-8mm Needle Size: DP*17 (21# 23#)
Hook: Large Vertical Hook Lubrication: Automatic Lubrication
Working Space: 250*125mm Condition: New
High Light:

Large Hook Lockstitch Sewing Machine

,

DP17 Lockstitch Sewing Machine

,

LED lighting Lockstitch Sewing Machine



Industrial Single Needle High Speed Large Hook Lock Stitch Sewing Machine​



Product introduce

This is a sewing machine with LCD voice function. Equipped with eight languages,This machine uses a large vertical shuttle with a large thread volume, which reduces the frequency of replacing the bottom thread. The Qixing electronic control system is adopted, which is simple and convenient to operate.



Product advantages

1. It adopts a large vertical shuttle and has a large thread volume, which reduces the frequency of replacing the bottom thread.
2. The automatic lubrication device is adopted to increase the lubricity of the parts and reduce friction. At the same time, manual lubrication is reduced, manpower is reduced, and production efficiency is improved.
3. This machine has the functions of automatic thread trimming, automatic reverse stitching and fixed needle up and down. It can be equipped with electric presser foot lifting and pneumatic presser foot lifting.

4,Adopt big brand Qixing electronic control system.



Parameter of machine

Model JL-0303DXL
Brand Jianglong
Presser foot lift 6mm (by hand) 13mm (by knee)
Number of Needle single needle
motor LCD voice (30mm core diameter) Qixing Electronic Control
Mechanical Configuration flat-bed
Feed Mechanism top and bottom feed
Dimensions 75*25.5*50cm/74*33*50cm(Package with electromagnet)
Color white
N.W 33KG



Applications
Suitable for sewing heavy bags, such as mountaineering bags, computer bags, and student school bags.



product details

1, LED lighting function, good for needle threading.

Can maintain better work in poor light conditions.

LED Lighting DP17 Large Hook Lockstitch Sewing Machine 0



2,Reverse stitch handle
Press the reverse sewing handle to automatically reverse sewing and strengthen sewing.

LED Lighting DP17 Large Hook Lockstitch Sewing Machine 1









3,Function control panel.

Select the corresponding function according to the sewing needs

LED Lighting DP17 Large Hook Lockstitch Sewing Machine 2





4. Automatic trimming function
The arc-shaped tangent structure is adopted, the tangent timing is accurate, the adjustment is convenient and the efficiency is improved.

LED Lighting DP17 Large Hook Lockstitch Sewing Machine 3



FAQ



Q1. Is your company a factory or trading company?
A. We are sewing machine factory, we focus on excellence sewing machine.





Q2. How about your machine quality?
A. I cannot answer to you from our side. But our customer said to us our machine quality is good and use it about two years no change voice. After you use it, you will more understand our quality.




Q3. How about your price?
A. The price depends on model. Our price no expensive, but also no very cheap, in general, quality is better than price.



Q4. Can I buy one or two pieces?
A. Normally, our MOQ is 50 pcs. However, we can send one or two pieces machine to your china agent and exported by yourself.





Q5. How can I get a quotation?
A. First please give us your email address and which machine are your interesting.
