Product Details:
|
| Product Name: | Electronic Pattern Sewing Machine | Max. Sewing Speed: | 2500（r.p.m) |
|---|---|---|---|

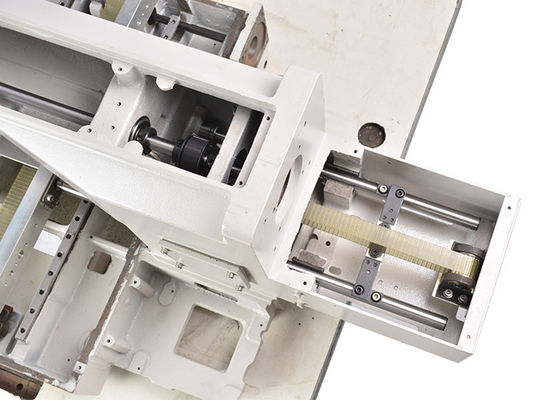

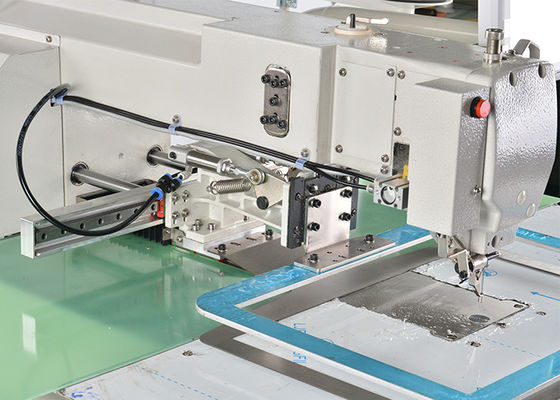

| Y Direction Transmission Mode: | Internal Double Axis Frame Type | Lifting Height Of External Pressure Plate: | 30mm |
| External Pressure Frame Lifting Method: | Pneumatic | Needle Size: | DP*17 12#-23# |
| Rotating Hook: | 2 Times Large Capacity Full Rotating Hook | Memory Device: | Internal Memory/USB Memory Disk (U Disk) |
| High Light: | U disk Computerized Sewing Machine,pneumatic Computerized Sewing Machine,3020 pneumatic Sewing Machine |
||

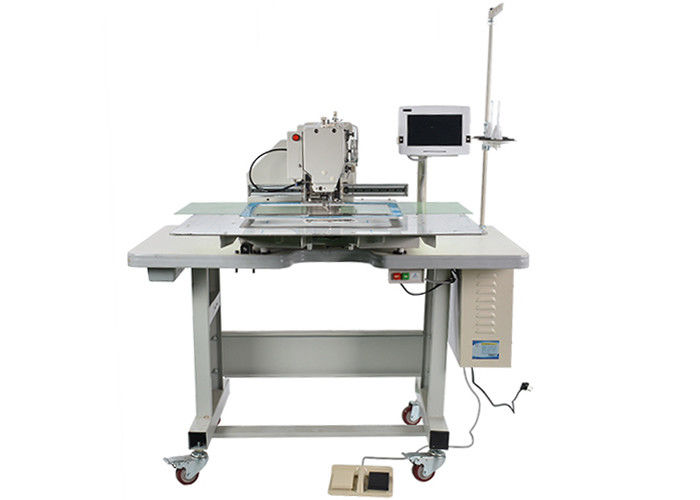

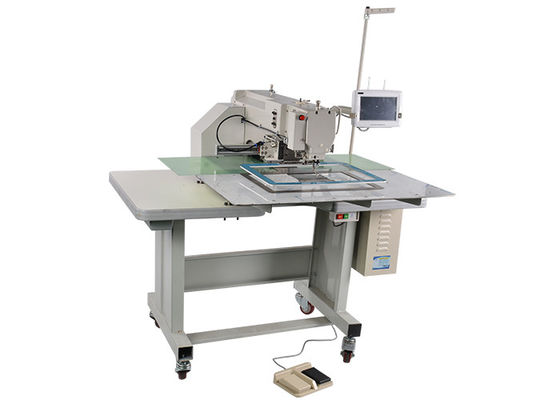

High Speed Automatic Electronic Pattern Industrial Leather Bag Shoes Sewing Machine
Product Introduction
1 Equipped with a high-precision computer control system, high-performance servo motor drive, the sewing pattern can be set arbitrarily within the sewing range.
2 The structural design is rigorous and unique, and the transmission is precise and reliable. Set various parameters such as pattern, number of stitches, stitch length and speed through the programmer.
3 Pattern input, storage, modification and recall are convenient.
4 It is also possible to input a pre-programmed pattern for sewing through the USB interface.
5 is a large-size electronic pattern sewing equipment suitable for reinforcement seams and decorative seams in luggage, handbags, sports shoes, clothing, home textiles and other industries.
Parameter of machine
| Model | JL-3020 |
| Brand | Jianglong |
| Number of memory patterns | 999 types |
| Memory needle number | 20000 stitches per pattern |
| Motor | 750W direct drive servo motor |
| Voltage | 220V/240V |
| Thick material range | 1-10mm |
| Operation panel | 7.5 inch LCD |
