Product Details:
|
| Product Name: | High Speed Industrial Sewing Machine | Number Of Needle: | Single Needle |
|---|---|---|---|
| Max. Sewing Speed: | 2200(r.p.m) | Max.Stitch Length: | 0-8mm |
| Mechanical Configuration: | Cylinder Bed | Hook: | Small Horizontal Hook |
| Working Space: | 260×103mm | Condition: | New |
| High Light: | 2200RPM Single Needle Sewing Machine,Jianglong Leather Sewing Machine,2200RPM Leather Sewing Machine |
||

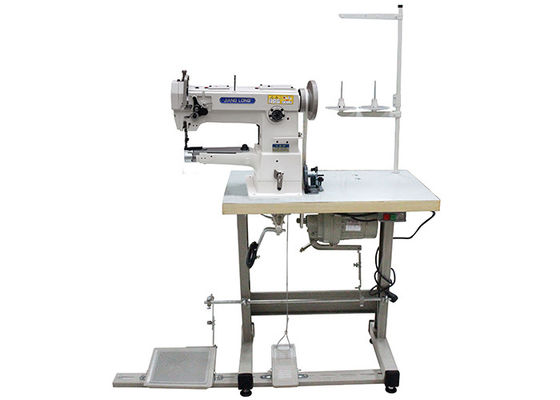

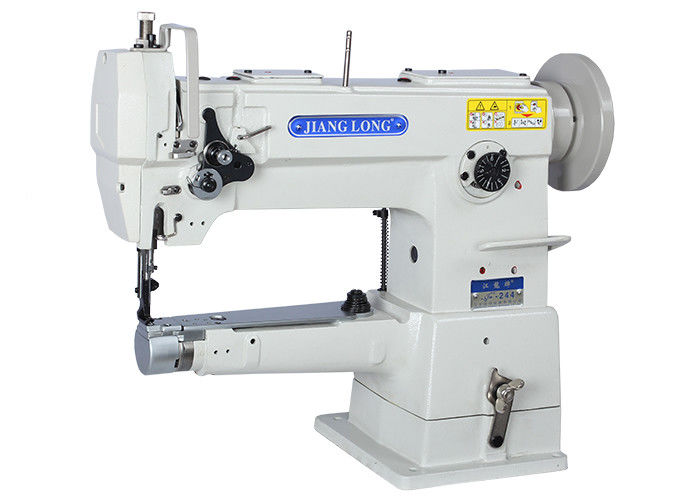

Compound Feed Small Mouth Leather Backpack Stitching Industrial Sewing Machine
Product introduce

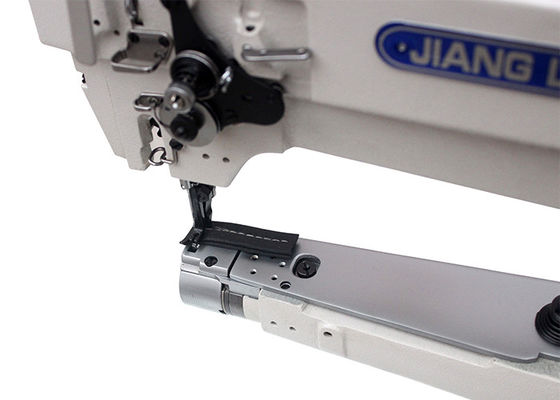

It is a medium-heavy leather sewing machine, using a small cylindrical sewing table, using ordinary shuttles, compound feed, synchronous mobile hemming device, mainly for sewing leather products, like leather, can be sewn Good results.
Product advantages
The operation and adjustment are convenient and easy to learn, the sewing stitches are beautiful and balanced, the work efficiency is outstanding, and the functions of hemming and open thread are convenient to exchange.
Applications
Suitable for all kinds of leather goods, ladies leather bags, car steering wheel covers, leather garment production, belts, wallets, etc.
Product parameter
| Model | JL-244 |
| product name | Cylinder bed sewing machine |
| keyword | High speed sewing machine |
| presser foot lift | 8mm (by hand) 12mm (by knee) |
| voltage | 220V |
| sewing material | heavy dutymaterial |
product details
reverse stitch wrench
The reverse stitch wrench is in a static state during sewing operation. If you need to reinforce the sewing material, press the reverse stitch wrench and the sewing material will be fed back.
Thread clamp
Adjust the tension of the upper thread.
Adjust presser foot lifting function
Adjust the height of the alternate feeding of the presser foot by adjusting the position of the disc nut.
Adjusting the stitch length digital dial
The digital stitch length dial can be adjusted in 1-6 steps. The operator can easily rotate the dial to achieve the ideal stitch length. Turn clockwise to shorten the stitch length, and vice versa.
Pressure adjusting nut
Adjust the pressure of the large and small presser feet; turn clockwise to increase the pressure when sewing thick materials, so that the machine can feed stably and the stitch length is even; on the contrary, when sewing thin materials, reduce the pressure so that the sewing material does not wrinkle.
Tooth support
The tooth frame fulcrum damping spring can balance the tooth feeding lever to achieve stable tooth feeding.
