Product Details:
|
| Product Name: | High Speed Industrial Sewing Machine | Max. Sewing Speed: | 2000(r.p.m) |
|---|---|---|---|
| Max.Stitch Length: | 0-8.0mm | Diameter Of Cylinder Bed: | 65mm |
| Needle Size: | DP*17 (21#) | Hook: | Small Vertical Hook |
| Lubrication: | Automatic Lubrication | Condition: | New |
| High Light: | 2000RPM Cylinder Bed Sewing Machine,220V Cylinder Bed Sewing Machine |
||

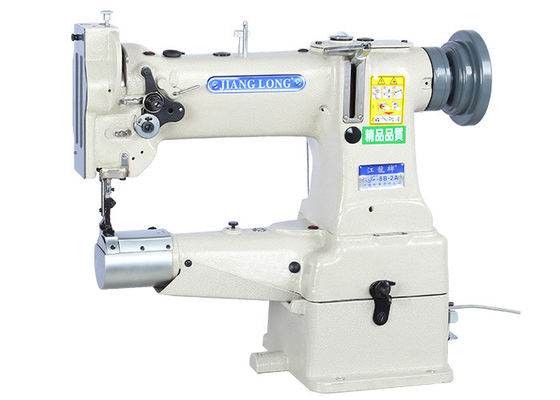

China High Quality Heavy Material Single Needle Cylinder Bed Industrial Sewing Machine
Product introduce
This is a cylinder type integrated feed sewing machine with a patent design. The machine adopts a fully automatic circulating oil supply system to greatly reduce the loss of parts. This machine is an improved new product.
Product advantages
The use of automatic circulating oil supply device saves manual lubrication time and improves production efficiency.
The machine adopts parts with high wear resistance and high precision to increase the service life of the machine.
Applications
Suitable for the surrounding operations of heavy bags, suitcases and mattresses.
Product parameter
| product name | sewing machine for thick thread |
| keyword | glave sewing machine |
| presser foot lift | 8mm (by hand ) 14 mm ( by knee ) |
| Voltage | 220 v |
| Feed Mechanism | Compound Feed |
| Working Space | 250*110mm |
Product details
Automatic circulating oil supply device
Improved on the basis of traditional manual lubrication, equipped with a high-pressure oil pump to automatically supply oil to all parts of the machine to achieve free lubrication of each part, greatly extending the service life of the machine and reducing the wear of the parts.
Back needle handle
The machine adopts the stitch length adjustment and the reverse seam structure to integrate, the appearance is beautiful, the structure is reasonable, the length of the stitch length can be changed by adjusting the front and back of the nut, and the reverse seam feeds when the reverse seam handle is pulled down.
Thread clamp
Adjust the tension of the upper thread.
Fuel supply observation window
You can observe the oil supply through this window.
