Product Details:
|
| Product Name: | Double Needle Sewing Machine | Max. Sewing Speed: | 2000(r.p.m) |
|---|---|---|---|
| Needle Size: | DP*17 (21#) | Hook: | Large Vertical Hook |
| Lubrication: | Automatic Lubrication | Working Space: | 1041*150mm |
| Motor: | Ordinary Clutch Motor Optional / Energy-saving Adjustable Speed Motor (including Fixed Needle, Adjustable Speed) | Condition: | New |
| High Light: | 2000RPM Industrial Sewing Machine,Compound Feed Flat Bed Sewing Machine,2000RPM Flat Bed Sewing Machine |
||

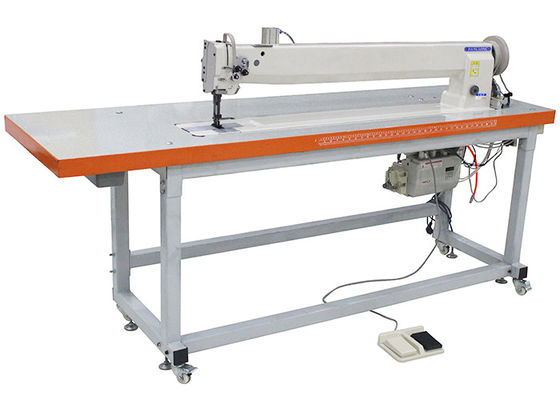

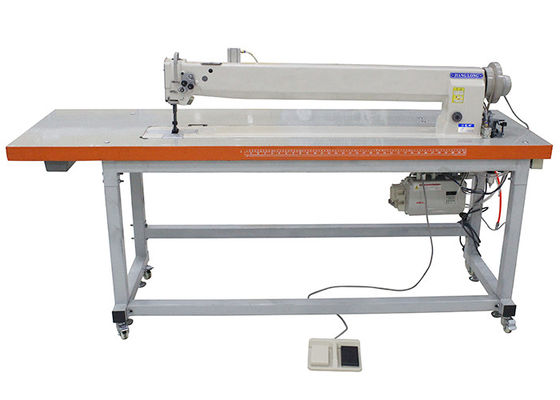

Long Arm Compound Feed Twin Needles Industrial Flat Bed Sewing Machine
Product introduce
This is a three-synchronous comprehensive feeding and long double-needle industrial sewing machine, which can choose pneumatic presser foot lift and pneumatic reverse stitching. Its working space is as high as 1041*150mm, the maximum sewing speed is 2000 (s.p.m), and the maximum stitch length is 11mm. It adopts synchronous toothed belt transmission and plunger oil pump lubrication system. The oil pump can suck the oil stored in the oil basin to various key parts of the machine head to reduce friction. This is a customized product, the sewing space size can be selected according to the needs (380*125/457*150/600*125/1000*150).
Product feature

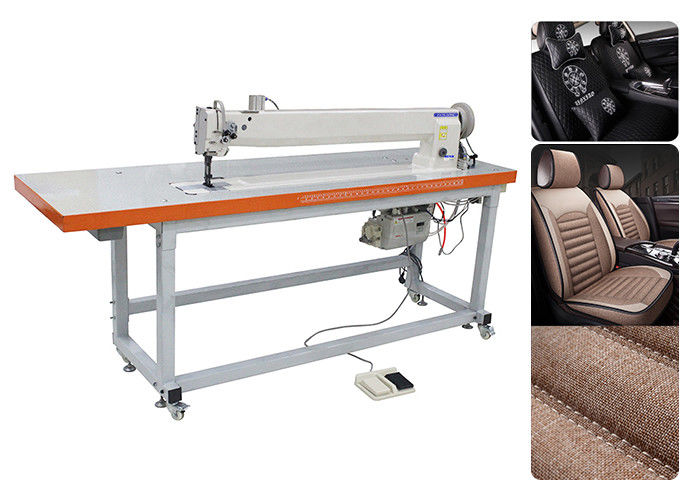

1.Large operating space, able to sew large and long products, such as baseball bags, badminton racket bags, etc.
2.In terms of overall performance, the machine is light and slippery, with low noise and high durability.
Parameter of the machine
| Model | JL-6620-41 |
| Brand | Jianglong |
| Numbers of needle | double needle |
| Presser foot lift | 8mm(by hand)16mm(by knee) |
| motor | Optional |
| Mechanical Configuration | flat-bed |
| Feed Mechanism | Compound Feed |
| Dimensions | Customized |
Product details
1. Automatic circulating oil supply device, an improved version based on traditional manual oiling, equipped with a high-pressure oil pump to automatically supply oil to all parts of the machine to achieve free lubrication of various parts, greatly increase the service life of the machine and reduce parts wear.
2. Double needle, Double needle sewing can reduce sewing time and make stitches more beautiful

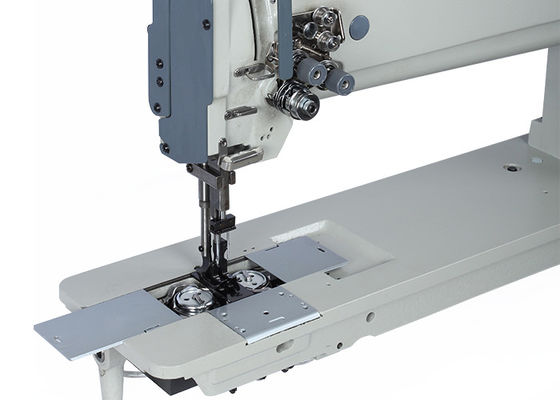

3. Thread clamp, adjust the tension of the upper thread and also have the function of loosening the thread.
4. Optional air cylinder: pneumatic presser foot lifting, operation is more labor-saving.
FAQ
|
Q1. Is your company a factory or trading company? A. We are sewing machine factory, we focus on excellence sewing machine.
|
|
|
|
Q3.How about your price?
|
|
Q4. Can I buy one or two pieces?
|
|
Q5. How can I get a quotation? A. First please give us your email address and which machine are your interesting.
|
