Product Details:
|
Product Name: | Compound Feed Sewing Machine | Max. Sewing Speed: | 2200(r.p.m) |
---|---|---|---|
Max.Stitch Length: | 0-6.5mm | Diameter Of Cylinder Bed: | 65mm |
Needle Size: | DP*17 (21#) | Hook: | Small Vertical Hook |
Lubrication: | Automatic Lubrication | Working Space: | 250×110mm |
High Light: | 250×110mm Compound Feed Sewing Machine,32KG Compound Feed Sewing Machine,32KG Vertical Hook Sewing Machine |

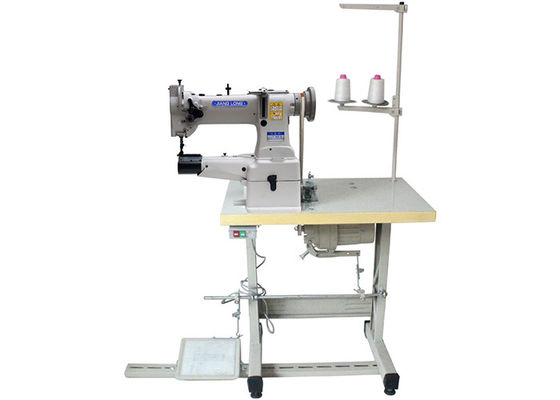

Single Needle Fast Speed Sewing For Leather Cylinder Bed Industrial Sewing Machine
Product introduce
This is an automatic oil-supply sewing machine, which uses a sliding rod to take up the thread, a vertical rotary hook to hook the thread to form a double-thread lock stitch, and the upper and lower shafts are driven by a synchronous toothed belt. The presser foot, the feed dog, and the needle feed synchronously, and the lever type stitch length adjustment mechanism. High-pressure foot stroke, high-pressure foot lifting clearance and large stitch length, with cylindrical sewing table, suitable for seam sewing of school bags, travel backpacks, rucksacks, handbags, etc.
Product advantages
Automatic oil supply design, the latest adjustable tooth frame, feeding up and down more accurately and synchronously. The wear resistance of parts is greatly improved. Optional clutch motor, electronic energy-saving motor (including fixed needle, adjustable speed)
Parameter of machine
Model | JL-8B-2 |
Number of Needle | Single Needle |
Max. Sewing Speed | 2200(r.p.m) |
Max.Stitch Length | 0-6.5mm |
Diameter of Cylinder Bed | 65mm |
Presser foot lift | 8 mm (by hand ) 14 mm (by knee) |
Needle size | DP*17 (21#) |
Hook | Small Vertical Hook |
Lubrication | Automatic lubrication |
Working Space | 250×110mm |
motor | Clutch Electric Motor, Electronic Energy-saving Machine |
Mechanical Configuration | Cylinder-bed |
Feed Mechanism | Compound Feed |
Dimensions | 66.6*26.6*51cm |
Color | White |
N.W | 32KG |
Applications
Used for sewing leather bags, leather bags, fabric trolley cases, mattresses

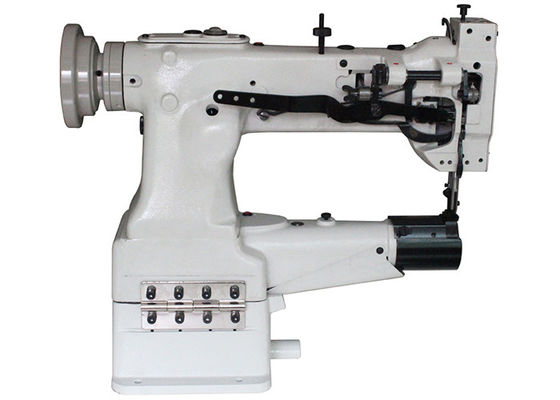

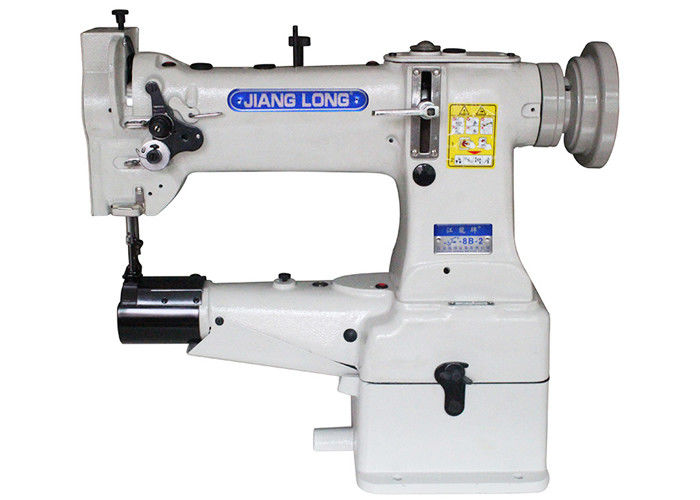

Product details
1. Parallel screws, which can fix the edging cylinder frame.
2. Oil supply observation window, this oil observation window is designed on the fuselage, and the oil supply situation can be observed through this window.
3. The automatic circulating oil supply device is an improved version on the basis of traditional manual oiling. It is equipped with a high-pressure oil pump to automatically supply oil to all parts of the machine to achieve free lubrication of various parts, greatly increase the service life of the machine and reduce parts wear.
FAQ
Q1. Is your company a factory or trading company? A. We are sewing machine factory, we focus on excellence sewing machine.
|
Q2. How about your machine quality? A. I cannot answer to you from our side. But our customer said to us our machine quality is good and use it about two years no change voice. After you use it, you will more understand our quality. |
Q3.How about your price? |
Q4. Can I buy one or two pieces? |
Q5. How can I get a quotation? A. First please give us your email address and which machine are your interesting.
|
