|Product Name:||Single Needle Industrial Sewing Machine||Max. Sewing Speed:||2200(r.p.m)|
|Max.Stitch Length:||0-8.0mm||Diameter Of Cylinder Bed:||65mm|
|Needle Size:||DP*17 (21#)||Hook:||Small Vertical Hook|
|Lubrication:||Automatic Lubrication||Working Space:||250×110mm|
50KG Computer Driven Sewing Machine,
Jianglong Computer Driven Sewing Machine,
50KG Cylinder Bed Sewing Machine

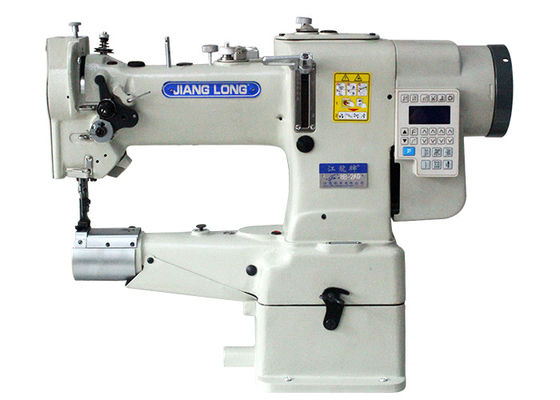

Patent Design Cylinder Bed Computer Direct Drive Integrated Industrial Sewing Machine

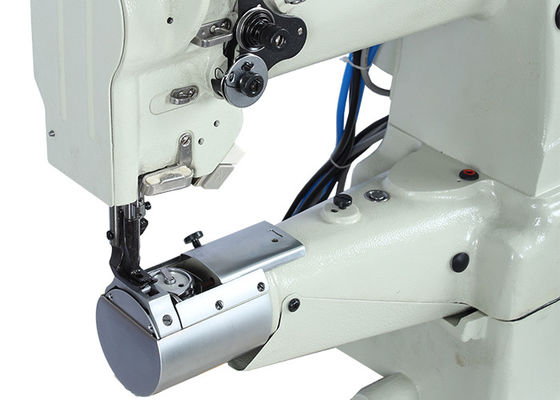

This is a computer-driven sewing machine with high-density and high wear resistance parts configuration. It has the functions of automatic winding core, up and down fixed needles, fully automatic circulating oil supply and lubrication design, which greatly reduces the wear of parts and reduces noise. The sliding rod type thread take-up and the vertical rotary hook hook the thread form a double-thread lock stitch. The upper and lower shafts are driven by a synchronous toothed belt. The presser foot, the feed dog, and the needle feed synchronously, and the lever type stitch length adjustment mechanism. High-pressure foot stroke, high-pressure foot lifting clearance and large stitch length, with cylindrical sewing table, suitable for seam sewing of school bags, travel backpacks, rucksacks, handbags, etc. Optional pneumatic presser foot lifting and reverse stitching device, which is efficient, energy-saving, environmentally friendly and silent.
It adopts the listed brand Powermax electronic control, 8mm large stitch design, 750W high-power motor, automatic presser foot lifting, automatic reinforcement sewing, automatic oil supply, fixed needle up and down, automatic winding, high-quality configuration, precise and rigorous selection of spare parts, The parts are purchased from regular large factories, and the quality is comparable to imported parts. The new black-gold steel tooth frame has more synchronized and accurate feeding, more stable and powerful stitching performance, and longer service life.
Parameter of machine
|Number of Needle||Single Needle|
|Max. Sewing Speed||2200(r.p.m)|
|Diameter of Cylinder Bed||65mm|
|Presser foot lift||8 mm (by hand ) 14 mm (by knee)|
|Needle size||DP*17 (21#)|
|Hook||Small Vertical Hook|
|motor||Servo Direct Drive Motor|
|Feed Mechanism||Compound Feed|
Suitable for leather, luggage, handbags.
1, LED lighting function, install the lighting lamp on the machine, it can work normally in poor light environment.
2. The pressure adjusting nut can adjust the pressure of the large and small presser feet; turn clockwise to increase the pressure when sewing thick materials, which can make the machine feed stably and the stitch length is even; on the contrary, when sewing thin materials, reduce the pressure and make the sewing material unavailable wrinkle.
3. Automatic circulating oil supply device, an improved version based on traditional manual oiling, equipped with a high-pressure oil pump to automatically supply oil to all parts of the machine to achieve free lubrication of all parts, greatly increase the service life of the machine and reduce parts wear.
4. The computer control panel .
