47.5mm Cylinder Bed 260×103mm Compound Feed Sewing Machine

47.5mm Cylinder Bed 260×103mm Compound Feed Sewing Machine
47.5mm Cylinder Bed 260×103mm Compound Feed Sewing Machine 47.5mm Cylinder Bed 260×103mm Compound Feed Sewing Machine 47.5mm Cylinder Bed 260×103mm Compound Feed Sewing Machine 47.5mm Cylinder Bed 260×103mm Compound Feed Sewing Machine 47.5mm Cylinder Bed 260×103mm Compound Feed Sewing Machine

Large Image :  47.5mm Cylinder Bed 260×103mm Compound Feed Sewing Machine

Product Details:
Place of Origin: Dongguan,China
Brand Name: Jianglong
Model Number: JL-244V- 2A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 514.71- 617.65 per set
Packaging Details: The inner packaging is a foam box, and the outer packaging is a carton
Delivery Time: 5-8 Work days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100000 Set per month

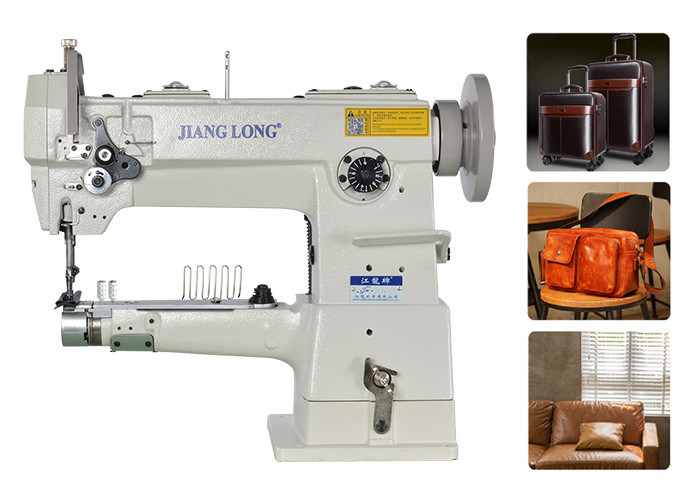

47.5mm Cylinder Bed 260×103mm Compound Feed Sewing Machine

Product Name: Cylinder Bed Sewing Machine Max. Sewing Speed: 2200(r.p.m)
Max.Stitch Length: 0-8mm Diameter Of Cylinder Bed: 47.5mm
Needle Size: DP*17 (18#) Hook: Small Horizontal Hook
Lubrication: Automatic Lubrication Working Space: 260×103mm
High Light:

47.5mm Cylinder Bed Sewing Machine


260×103mm Compound Feed Sewing Machine


260×103mm Cylinder Bed Sewing Machine


Industrial Heavy Duty Single Needle Compound Feed Leather Hamming Sewing Machine


Product introduce

This is an automatic oil supply hemming sewing machine with a small cylindrical sewing table and horizontal feeding and hemming operation. It can be sewn at high and low speeds with uniform and beautiful stitches. Synchronous mobile hemming device, hemming operation can be carried out during the sewing process. It is a thick leather sewing machine, mainly for sewing leather products, like real leather, it can sew very good results.


Product advantages

This is an upgraded version of the JL-244 model machine, This machine uses high-precision, high-density, and high-wear-resistant parts to increase the stability and wear resistance of the machine, making the machine less likely to vibrate greatly during operation, ensuring smooth feeding and smooth sewing materials, and at the same time Increase the service life of the machine.The functions of hemming and open thread can be interchanged conveniently.


Parameter of machine

Model JL-244V- 2A
Number of Needle Single Needle
Max. Sewing Speed 2200(r.p.m)
Max.Stitch Length 0-8mm
Diameter of Cylinder Bed 47.5mm
Presser foot lift 8 mm (bu hand) 12 mm (byknee)
Needle size DP*17 (18#)
Hook Small horizontal hook
Lubrication Automatic lubrication
Working Space 260×103mm
motor Clutch Electric Motor, Electronic Energy-saving Machine
Mechanical Configuration cylinder -bed
Feed Mechanism Compound Feed
Dimensions 57*27*62cm
Color White
N.W 35 kg


Application case

Suitable for all kinds of leather goods, ladies leather bags, car steering wheel covers, leather garment production, belts, wallets, etc.


Product details

1. The automatic circulating oil supply device is an improved version based on traditional manual oiling. It is equipped with a high-pressure oil pump to automatically supply oil to all parts of the machine to achieve free lubrication of all parts, greatly increase the service life of the machine and reduce parts wear.

2. The upper and lower transmission is connected to the crank, and the transmission shaft handle is optimized. The problem of heavy weight when the upper and lower linkage is reversed, strengthens the wear resistance of the parts.

3. The effect drawing of the new lifting structure, the new improved technology, the feeding misalignment is optimized, the service life is extended, the feeding is more accurate and stable, the up and down climbing is more powerful, and the stitches of the sewn leather are more beautiful.


4. The new feeding structure for lifting teeth: elliptical and horizontal feeding technology is improved and optimized. Thanks to the new balanced bracket, it solves the problems of unstable, easy to wear, and easy breakage of the traditional top column feeding. It solves the shortcomings of stitch length, broken needles, etc., and greatly increases the aesthetics of sewing leather stitches.

47.5mm Cylinder Bed 260×103mm Compound Feed Sewing Machine 0


5. Oil supply observation window, this oil observation window is designed in the fuselage, and the oil supply situation can be observed through this window.



6. Pressure adjustment nut: adjust the pressure of the large and small presser feet; turn clockwise to increase the pressure when sewing thick materials, which can make the machine feed stably and the stitch length is even; on the contrary, when sewing thin materials, reduce the pressure and make the sewing material unavailable wrinkle.





Q1. Is your company a factory or trading company?

A. We are sewing machine factory, we focus on excellence sewing machine.


Q2. How about your machine quality?
A. I cannot answer to you from our side. But our customer said to us our machine quality is good and use it about two years no change voice. After you use it, you will more understand our quality.


Q3.How about your price?
A.The price depends on model. Our price no expensive, but also no very cheap, in general, quality is better than price


Q4. Can I buy one or two pieces?
A. Normally, our MOQ is 50 pcs. However, we can send one or two pieces machine to your china agent and exported by yourself.


Q5. How can I get a quotation?

A. First please give us your email address and which machine are your interesting.
