Product Details:
|
| Product Name: | Electronic Pattern Sewing Machine | Max. Sewing Speed: | 2500（r.p.m) |
|---|---|---|---|
| Y Direction Transmission Mode: | Internal Double Axis Frame Type | Sewing Area: | 500mm*400mm |
| Stitch Length: | 0.1mm-12.7mm | Lifting Height Of External Pressure Plate: | 30mm |
| External Pressure Frame Lifting Method: | Electric | ||
| High Light: | USB Computerized Pattern Sewing Machine,5040 Computerized Pattern Sewing Machine,Internal memory Computerized Sewing Machine |
||

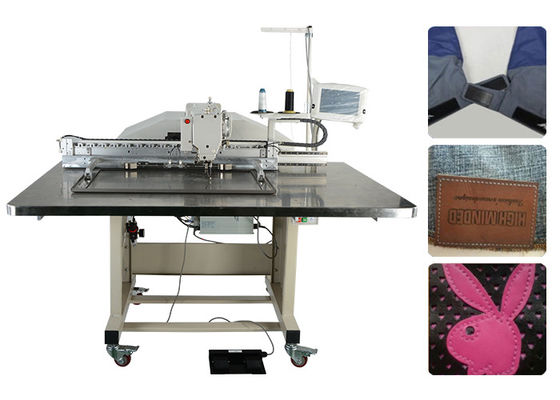

5040 Industrial Automatic Computer Leather Bags Pattern Sewing Machine
Product introduce
This machine is a series of Jianglong brand computer pattern sewing machines. Equipped with a high-precision computer control system, high-performance servo motor drive, the sewing pattern can be set arbitrarily within the specified range. The structural design is rigorous and unique, and the transmission is precise and reliable. Through the programmer, various parameters such as pattern, number of stitches, stitch length and speed can be set. Pattern input, storage, modification and recall are convenient. It is also possible to input various patterns of pre-programmed programs through the USB interface for sewing processing. It is a large-size electronic pattern sewing equipment suitable for reinforcement stitching and decorative stitching in the industries of luggage, belts, clothing, sports shoes, and home textiles.
Parameter of machine
| Model | JL-5040 |
| Number of needle | single needle |
| Adjustable stroke of the middle presser foot | Standard 4mm (0.1mm-8mm adjustable) only for HG type |
| Needle size | DP*17 12#-23# |
| Rotating hook | 2 size large capacity full rotating hook |
| Memory device | Internal memory/USB memory disk (U disk) |
| Number of memory patterns | 999 types |
| Memory needle number | 20000 stitches per pattern |
| Motor | 750W direct drive servo motor |
| Voltage | 220V/240V |
Machine advantage
1. Secondary clamping, you can adjust the stitch effect of a certain section or a certain needle at will.
2. Operating space, the maximum sewing range can reach 500*400 mm.
3. The computer control panel can output or import data through USB, without manual patterning, which improves work efficiency.
4. Pneumatic thread loosening makes thread loosening more precise and stable.
Product Case
It is suitable for reinforcement stitching and decorative stitching in industries such as bags, clothing, sports shoes, and home textiles.
