|Product Name:||Electronic Pattern Sewing Machine||Max. Sewing Speed:||2500（r.p.m)|
|Y Direction Transmission Mode:||Internal Double Axis Frame Type||Sewing Area:||500mm*300mm|
|Stitch Length:||0.1mm-12.7mm||Lifting Height Of External Pressure Plate:||30mm|
|External Pressure Frame Lifting Method:||Electric|
5030 Computerized Pattern Sewing Machine,
240V Computerized Pattern Sewing Machine,
2500RPM 240V Sewing Machine

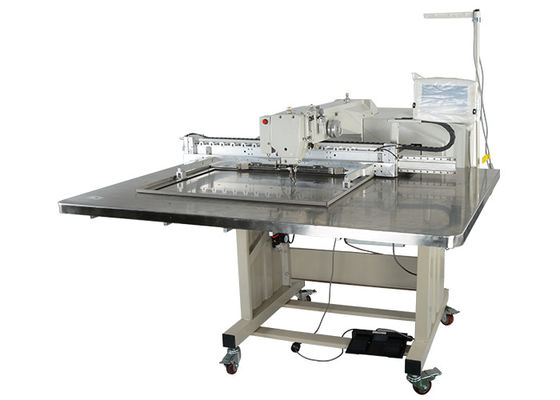

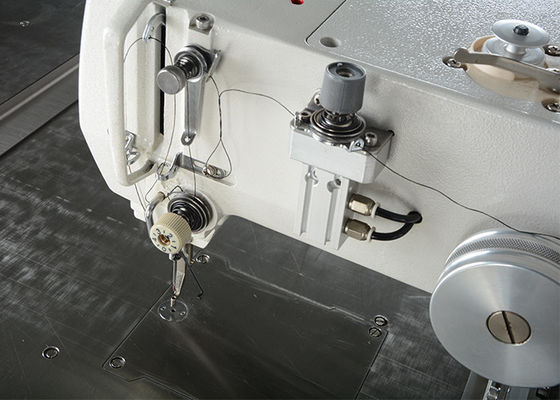

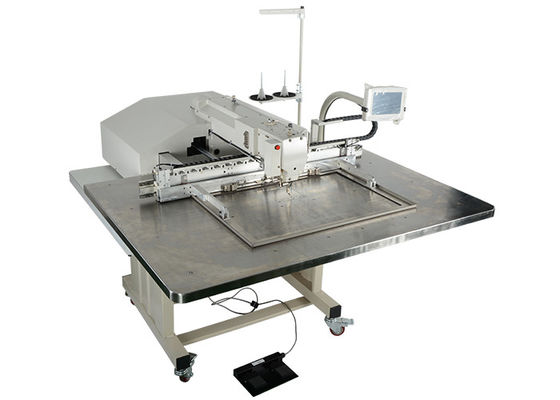

5030 Industrial Computer Car Seat Leather Computer Pattern Sewing Machine
This machine is a series of Jianglong brand computer pattern sewing machines. Equipped with a high-precision computer control system, high-performance servo motor drive, the sewing pattern can be set arbitrarily within the specified range. The structural design is rigorous and unique, and the transmission is precise and reliable. Through the programmer, various parameters such as pattern, number of stitches, stitch length and speed can be set. Pattern input, storage, modification and recall are convenient. It is also possible to input various patterns of pre-programmed programs through the USB interface for sewing processing. It is a large-size electronic pattern sewing equipment suitable for reinforcement stitching and decorative stitching in the industries of luggage, belts, clothing, sports shoes, and home textiles.
Parameter of machine
|Number of machine||single needle|
|Needle size||DP*17 12#-23#|
|Rotating hook||2 size large capacity full rotating hook|
|Memory device||Internal memory/USB memory disk (U disk)|
|Number of memory patterns||999 types|
|Memory needle number||20000 stitches per pattern|
|Motor||750W direct drive servo motor|
|Thick material range||1-10mm|
1. Secondary clamping, you can adjust the stitch effect of a certain section or a certain needle at will.
2. Operating space, the maximum sewing range can reach 500*300 mm.
3. The computer control panel can output or import data through USB, without manual patterning, which improves work efficiency.
4. Stainless steel needle board, precise material, as new as ever.
It is suitable for reinforcement stitching and decorative stitching in industries such as bags, clothing, sports shoes, and home textiles.
Q1. Is your company a factory or trading company?
A. We are sewing machine factory, we focus on excellence sewing machine.
Q3.How about your price?
Q4. Can I buy one or two pieces?
Q5. How can I get a quotation?
A. First please give us your email address and which machine are your interesting.
Contact Person: Charlie Luo
