Product Details:
|
Product Name: | Industrial Sewing Machine | Number Of Needle: | Single Needle |
---|---|---|---|
Max. Sewing Speed: | 2200(r.p.m) | Max.Stitch Length: | 0-9.5mm |
Diameter Of Cylinder Bed: | 70mm | Needle Size: | DP*17(21#) |
Hook: | Vertical/Standard Hook(26.4mm Core) | Lubrication: | Manual Lubrication |
High Light: | 9.5mm Stitch Cylinder Bed Sewing Machine,70mm Cylinder Bed Sewing Machine,9.5mm Stitch Thick Material Sewing Machine |

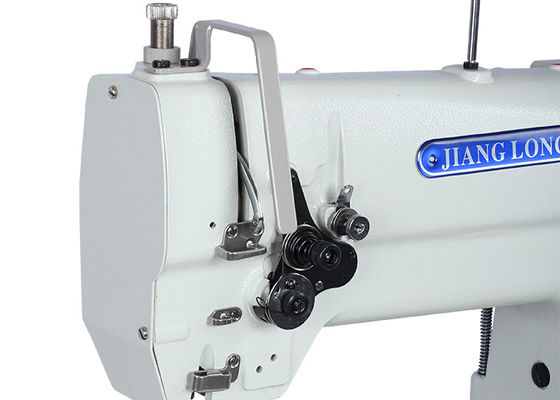

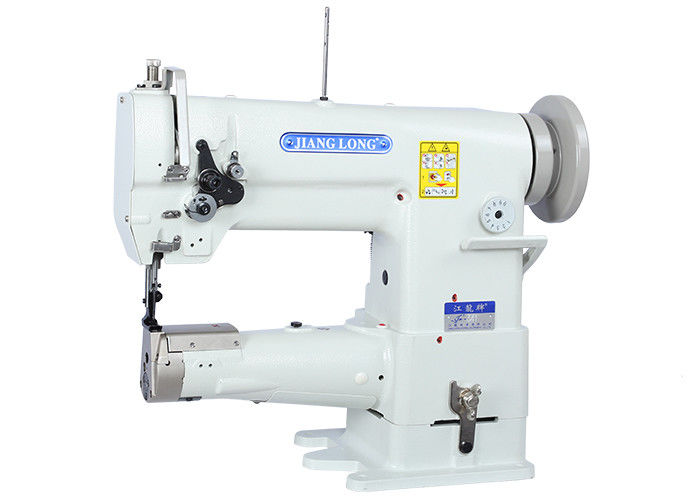

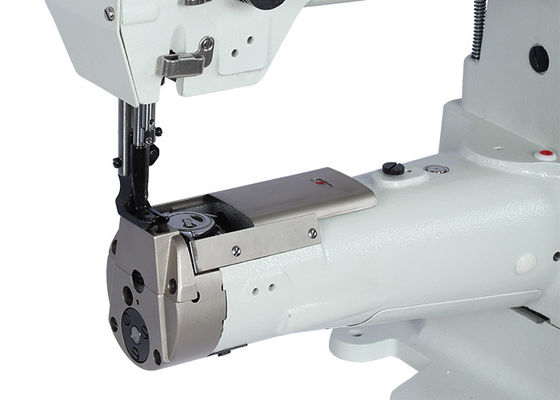

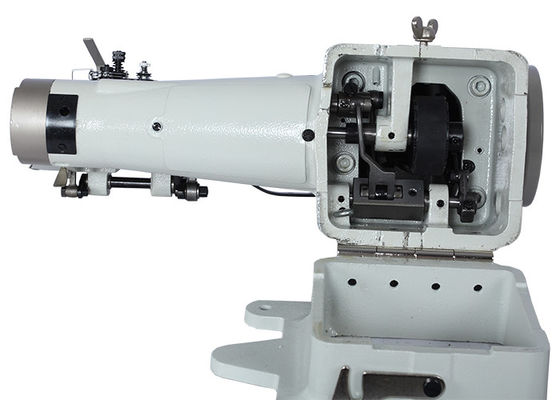

JL341 Cylinder Bed Luggage Bag Making Industrial Sewing Machine for Thick material
Product Introduction
1 Adopt the new tooth frame, double large rotary hook and shuttle, Taiwan-made twill gear, shuttle bed base with copper sleeve, standard horn splitter hook and other accessories.
2 The sliding rod is used to take up the thread to form a double-thread lock stitch, and the upper and lower shafts are driven by a synchronous gear belt.
3 Presser foot, feeding cloth, synchronous needle feeding, lever type stitch length adjustment structure.
4 Cylindrical thick material lockstitch sewing machine specially designed for luggage and bags.
Parameter of machine
Model | JL-341 |
Number of Needle | Single Needle |
Max. Sewing Speed | 2200(r.p.m) |
Max.Stitch Length | 0-9.5mm |
Diameter of Cylinder Bed | 0-9.5mm |
Diameter of Cylinder Bed | 70mm |
Presser foot lift | 8mm (by hand) 13mm (by knee) |
Needle size | DP*17(21#) |
Hook | Vertical/Standard hook(26.4mm Core) |
Lubrication | Manual lubrication |
Working Space | 250*110mm |
motor | Clutch Electric Motor, Electronic Energy-saving Machine |
Mechanical Configuration | cylinder -bed |
Feed Mechanism | Compound Feed |
FAQ
Q1. Is your company a factory or trading company?
|
Q2. How about your machine quality?
|
Q3. How about your price?
|
Q4. Can I buy one or two pieces?
|
Q5. How can I get a quotation?
|
