Automatic Trimmer 250*125mm Flat Bed Sewing Machine Football Making Machine

LCD Electronic Display Automatic Trimmer Industrial Sewing Machine for Football

Product introduce

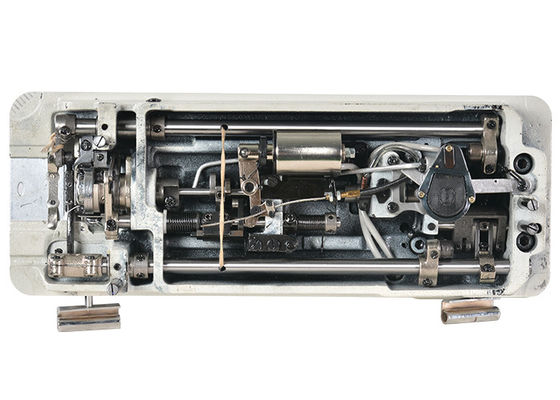

This machine adopts a connecting rod type upper and lower compound feeding mechanism and a presser foot alternate lifting mechanism to ensure smooth feeding; it adopts an automatic lubrication device, and the maximum speed can reach 2500 (rpm); it adopts the latest sewing structure to achieve the advantages of low tension sewing , The advantage of low thread tension; with automatic thread trimming, automatic reverse stitching, electronic thread clamping and other functions, increase work efficiency and reduce labor costs. It uses LCD voice type Qixing electronic control, LCD touch screen, USB charging port, with voice broadcast function, optional 8 languages, and standard pneumatic presser foot lifting.

Product advantages

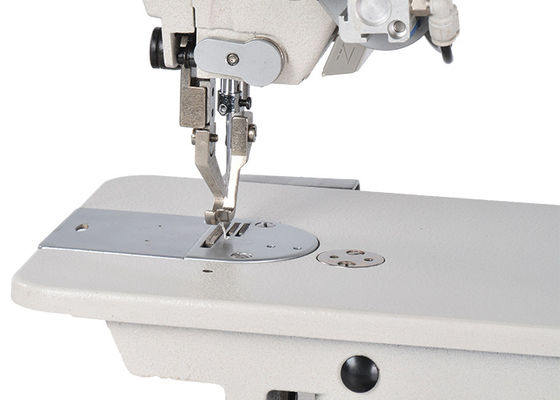

It can meet the sewing needs with particularly tight stitches. The LED touch function panel, voice broadcast, upper and lower composite feeding, automatic thread trimming, automatic reverse stitching, automatic oil supply, electronic thread clamping and other functions increase work efficiency. The upper and lower compound feeding mechanism and the presser foot alternate lifting mechanism ensure smooth feeding.

Parameter of machine

Product details

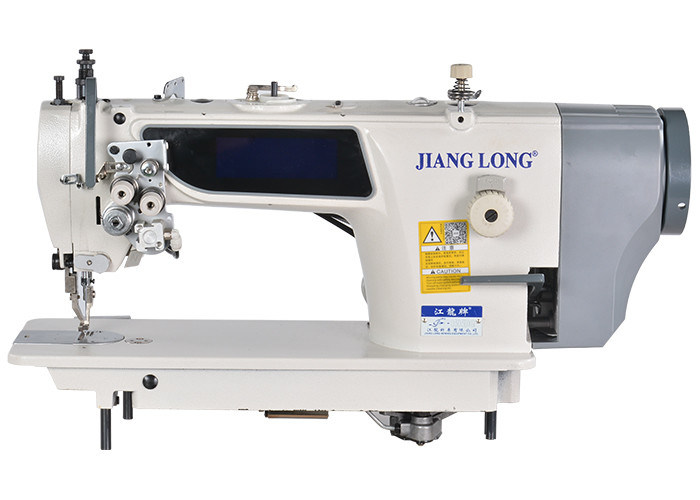

1. Function control panel, select the corresponding function according to the needs of sewing. Touch screen L ED LCD functional panel, with microphone, can broadcast voice.

2. USB charging function, the machine is convenient for mobile phone charging, using a stable USB charging interface, you can charge while working.

3. Electronic thread clamp, which can sink the thread end into the back of the fabric, which can avoid the cost of manual thread trimming.

4. Oil supply observation window, the oil observation window set on the fuselage, through which the oil supply situation can be observed.

5. One-piece winder, which adopts a new type of sewing winding body, which replaces the traditional disadvantages of inconvenient belt winding and disordered winding of the bottom thread, and its appearance is beautiful and practical.

6. Adjust the stitch length dial

7. Manual reverse sewing switch, press the reverse sewing switch, you can freely reverse sewing and reinforcement sewing.
Hemming device installation base: The base set in the sewing machine is convenient for installing various rules, hemming devices, etc.

8. Automatic thread trimming function. This machine adopts an arc-shaped thread tangent structure, with accurate thread trimming timing, convenient adjustment, and improved work efficiency.

9, LED lighting function, the LED lighting installed on this machine can facilitate better work in poor light conditions.
