|Product Name:||Leather Sewing Machine||Max. Sewing Speed:||2500(r.p.m)|
|Max.Stitch Length:||0-8mm||Needle Size:||DP*17 (21# 23#)|
|Hook:||Large Vertical Hook||Lubrication:||Automatic Lubrication|

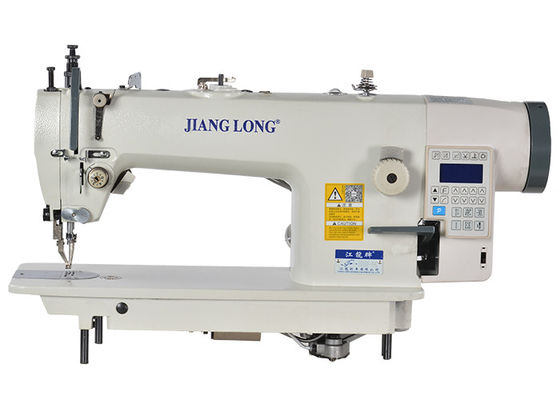

330*125mm Single Needle Sewing Machine
Large Operating Space Lock Stitch Single Needle Industrial Sewing Machine

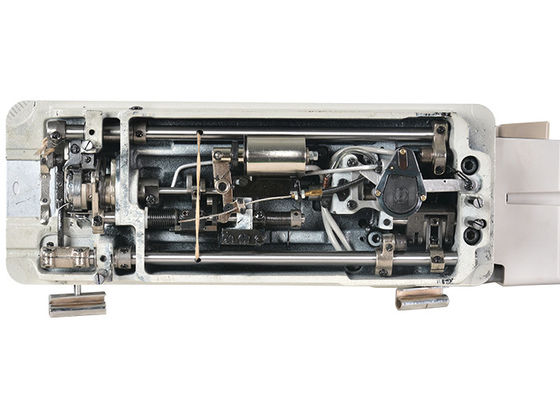

This is a direct-drive large operating space sewing machine with automatic thread trimming. This machine adopts an upper and lower compound feeding mechanism to ensure smooth feeding. The presser foot lifting shaft adopts sealed automatic lubrication to reduce the number of parts. Of friction.
1. It adopts a large vertical shuttle and has a large thread volume, which reduces the frequency of replacing the bottom thread.
2. The automatic lubrication device is adopted to increase the lubricity of the parts and reduce friction. At the same time, manual lubrication is reduced, manpower is reduced, and production efficiency is improved.
3. This machine has the functions of automatic thread trimming, automatic reverse stitching and fixed needle up and down. It can be equipped with electric presser foot lifting and pneumatic presser foot lifting.
4,Adopt big brand powermax electronic control system.
5,large operating space,Meet different sewing needs.
Parameter of machine
|Number of Needle||single needle|
|Presser foot lift||6mm(by hand) 13mm (by knee)|
|motor||Servo Direct Drive Motor|
|Feed Mechanism||top and bottom feed|
Suitable for sewing heavy bags, such as mountaineering bags, computer bags, and student school bags.
1,LED lighting function, good for needle threading.
Can maintain better work in poor light conditions.
2,Reverse stitch handle
Press the reverse sewing handle to automatically reverse sewing and strengthen sewing.
3,Function control panel.
Select the corresponding function according to the sewing needs
4. Automatic trimming function
The arc-shaped tangent structure is adopted, the tangent timing is accurate, the adjustment is convenient and the efficiency is improved.
5,Large Operating Space
