Product Details:
|
| Product Name: | Sewing Machine For Large Materials | Number Of Needle: | Double Needle |
|---|---|---|---|
| Max. Sewing Speed: | 2000(r.p.m) | Max.Stitch Length: | 0-11mm |
| Needle Size: | DP*17 (21#) | Hook: | Large Vertical Hook |
| Working Space: | 380*150mm | Condition: | New |
| High Light: | Compound Feed Lockstitch Sewing Machine,11mm Lockstitch Sewing Machine,2000RPM Lockstitch Sewing Machine |
||

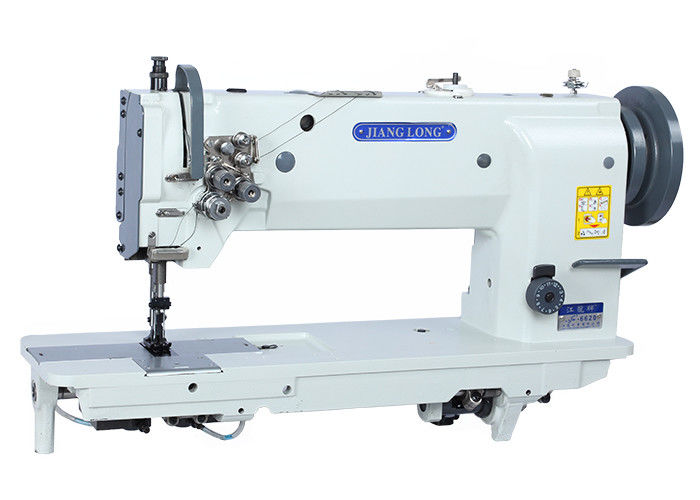

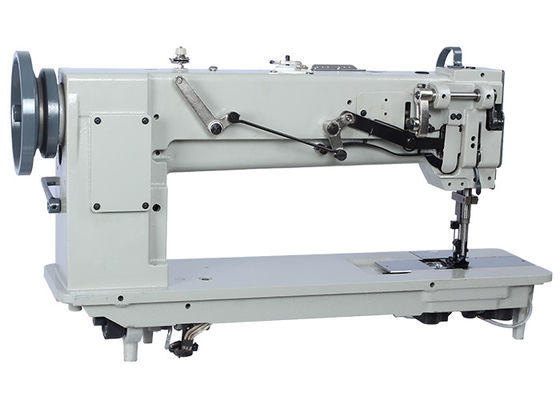

Long Arm Compound Feed Flat Bed Double Needle Lockstitch Industrial Sewing Machine
Product introduce
This is an extended triple-synchronization heavy-material double-needle lockstitch sewing machine. It is also a car mat stitching machine and heavy-weight long arm lockstitch sewing machine. It adopts a large vertical rotary hook to hook the thread and the connecting rod to take up the thread, which can pass the thick thread and has a large thread volume, reducing frequent replacement of the bottom thread. Divided into single needle, double needle, synchronous toothed belt transmission, plunger oil pump lubrication system, the oil pump can suck the oil stored in the oil basin to various key parts of the machine head to reduce friction. It is a customized product, and the sewing space size can be ordered according to demand (380*125/457*150/600*125/1000*150).
Product advantages
Extended double needles, thick material flat seams, using vertical large shuttles, the whole machine rotates smoothly in terms of comprehensive performance, low noise, and high durability.
Applications
Suitable for car cushions, seat belts, airbags, sewn tents, seats, cushions, leather bags, suitcases, leather and sofa products.
Product parameter
| Model | JL-6620-15 |
| Product name | Industrial sewing machine |
| Keyword | High speed long arm sewing machine |
| Presser foot lift | 8mm (by hand) 16mm (by knee) |
| Voltage | 220 V |
| Sewing material | Thick Leather |
Product Details
Wire bonder
Automatic winding, convenient and fast, improve work efficiency.
Automatic circulating oil supply device
An improved version on the basis of traditional manual oiling, equipped with a high-pressure oil pump to automatically supply oil to all parts of the machine to achieve free lubrication of all parts, greatly increase the service life of the machine and reduce parts wear.

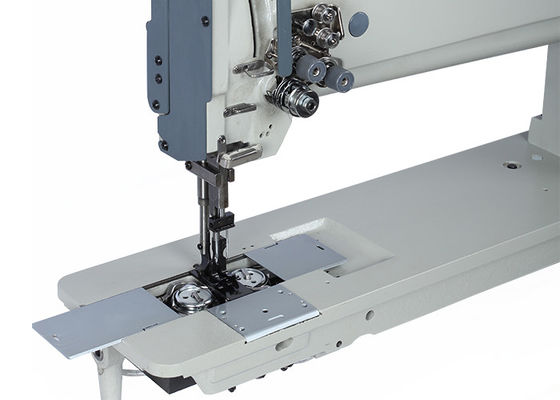

Working space
The working space can be selected according to the size of the material (optional ,380*125/457*150/600*125/1000*150)
