Product Details:
|
| Product Name: | Single Needle Sewing Machine | Number Of Needle: | Single Needle |
|---|---|---|---|
| Max. Sewing Speed: | 2200(r.p.m) | Max.Stitch Length: | 0-9.5mm |
| Mechanical Configuration: | Cylinder Bed | Hook: | Vertical/Standard Hook（26.4mm Core） |
| Working Space: | 250*110mm | Condition: | New |
| High Light: | 9.5mm Stitch Heavy Duty Sewing Machine,9.5mm Cylinder Bed Sewing Machine,Jianglong Heavy Duty Sewing Machine |
||

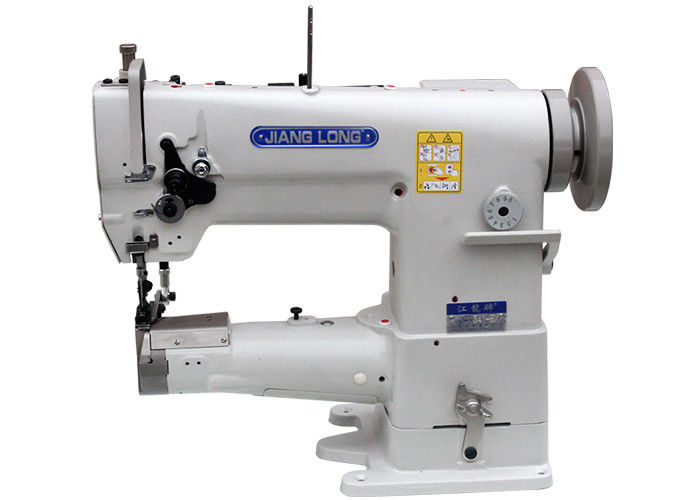

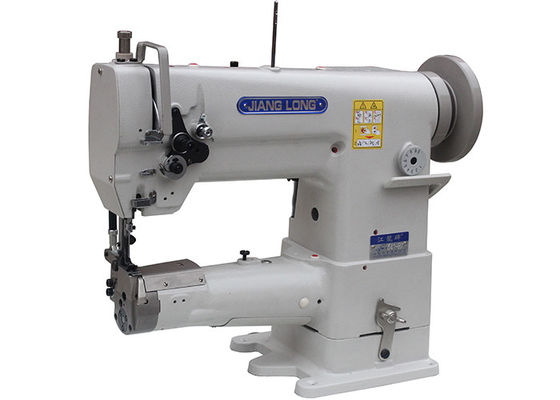

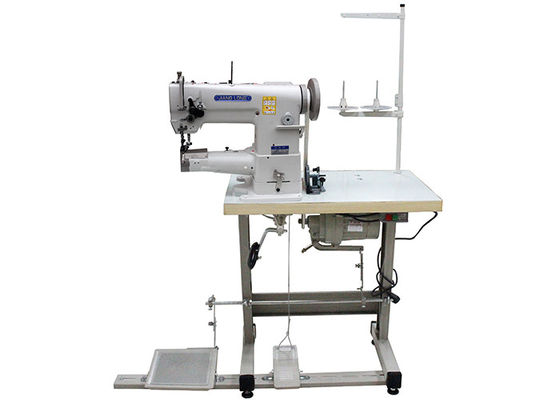

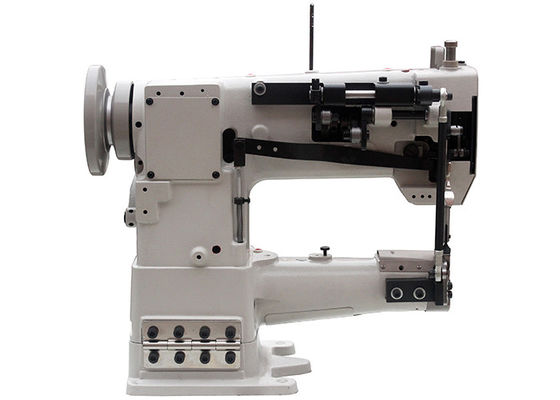

Cylinder Bed Heavy Duty Automatic Trimming Industrial Sewing Machine With Knife
Product introduce
This is a large-mouth sewing machine with a trimming knife on the right. The shuttle uses a vertical standard shuttle. The oil filling method adopts manual oil filling. The machine adopts a sliding rod to take up the thread to form a double-thread lock stitch. The upper and lower shafts are driven by a synchronous toothed belt. The presser foot, feed dog, and needle feed synchronously.
Product advantages
This machine is a cylindrical thick-material sewing machine specially designed for the manufacture of luggage and bags, with solid mechanism and novel shape. The sewing space reaches 250*100mm. Fixed trimming knife holder, straw hat and leather edge for trimming leather. It can cut off the excess edge material while sewing, which improves work efficiency and reduces labor costs.
Applications
Suitable for handbags, toys, luggage, hats, etc.
Product parameter
| Modle | JL-341RD |
| product name | single needle sewing machine industrial |
| keyword | industrial sewing machine for leather, atomatic trimming |
| presser foot lift | 8mm ( by hand ) 13mm(by knee) |
| voltage | 220V |
| sewing material | leather and fabric material |
product details
Tool holder on the right
Fixed trimming knife holder, straw hat and leather edge for trimming leather.
Cylindrical sewing table
The cylindrical sewing table can sew difficult and complicated operations such as cylindrical bag openings that cannot be sewn by a flat sewing machine. The cylindrical diameter is 70mm.
Adjust the stitch length digital dial
The digital gauge dial can be adjusted in 1-6 steps. The operator can easily rotate the dial to achieve the ideal gauge. Turn clockwise to shorten the gauge, and vice versa.
Parabolic screws, the role of parabolic screws to fix the edging tube frame.
Pressure adjusting nut
Adjust the pressure of the large and small presser feet; turn clockwise to increase the pressure when sewing thick materials, which can make the machine feed stably and the stitch length is even; on the contrary, when sewing thin materials, reduce the pressure to make the sewing material without wrinkles.
Reverse stitching handle
The reverse stitching handle is in a static state during sewing operation. If the sewing material needs to be reinforced, the sewing material will be fed back when the reverse stitching handle is pressed down.
Thread tensioner, adjust the tension of the upper thread
