Product Details:
|
Product Name: | Cylinder Bed Sewing Machine | Max. Sewing Speed: | 2200(r.p.m) |
---|---|---|---|
Max.Stitch Length: | 0-10.5 Mm | Diameter Of Cylinder Bed: | 70mm |
Needle Size: | DP*17(21#) | Hook: | Vertical Standard Hook(26.4mm Core) |
Lubrication: | Automatic Lubrication | Working Space: | 250*110mm |
High Light: | 6860D Compound Feed Sewing Machine,6860D Single Needle Sewing Machine,big mouth Compound Feed Sewing Machine |
6860D Lock Stitch Single Needle Compound Feed Sewing Machine for Thick Material
Product introduce
High-quality computer direct-drive big-mouth high-speed sewing machine heavy leather handbags and luggage industrial sewing machine, using Powermax electric control system, patented design, direct-drive integrated machine.
Product advantage
Optional electric presser foot lifting or pneumatic presser foot lifting, pneumatic reverse sewing device, efficient and labor-saving.
With automatic winding core, fixed needle function, automatic oil supply, high-quality configuration, precise selection of parts and accessories, durable.
Parameter of machine
Model | JL-6860D |
Number of Needle | Single Needle |
Max. Sewing Speed | 2200(r.p.m) |
Max.Stitch Length | 0-10.5mm |
Diameter of Cylinder Bed | 70mm |
Presser foot lift | 8 mm (by hand) 13 mm(by knee) |
Needle size | DP*17(21#) |
Hook | Vertical/Standard hook (26.4mm core) |
Lubrication | Automatic lubrication |
Working Space | 250*110mm |
motor | Servo Direct Drive Motor |
Mechanical Configuration | Cylinder-bed |
Feed Mechanism | Compound Feed |
Dimensions | 65.5*31*60.2cm |
Color | White |
N.W | 50KG |
Application case
suitable for sewing leather goods, handbags, luggage, hats, clothing, shoes, etc.
Product details

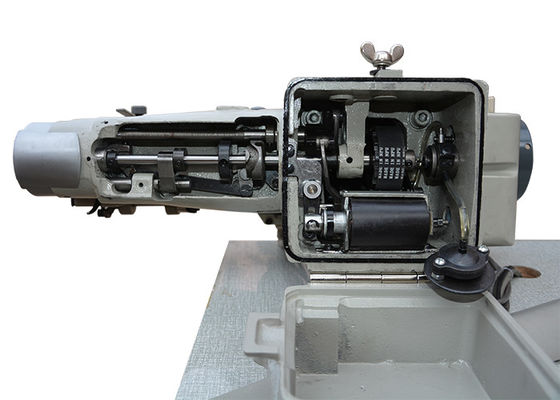

1. Oil supply observation window, this oil observation window is designed in the fuselage, and the oil supply situation can be observed through this window.
2. Automatic circulating oil supply device, an improved version based on traditional manual oiling, equipped with a high-pressure oil pump to automatically supply oil to all parts of the machine to achieve free lubrication of all parts, greatly increase the service life of the machine and reduce parts wear.
FAQ
Q1. Is your company a factory or trading company? A. We are sewing machine factory, we focus on excellence sewing machine.
|
Q2. How about your machine quality? A. I cannot answer to you from our side. But our customer said to us our machine quality is good and use it about two years no change voice. After you use it, you will more understand our quality. |
Q3.How about your price? |
Q4. Can I buy one or two pieces? |
Q5. How can I get a quotation? A. First please give us your email address and which machine are your interesting.
|
