Product Details:
|
| Product Name: | High Speed Sewing Machine For Luggage | Number Of Needle: | Single Needle |
|---|---|---|---|
| Max. Sewing Speed: | 2200（r.p.m） | Max.Stitch Length: | 0-8mm |
| Mechanical Configuration: | Cylinder Bed | Hook: | Large Horizontal Hook |
| Working Space: | 260×110mm | Condition: | New |
| High Light: | 50mm mouth Single Needle Sewing Machine,50mm Mouth Horizontal Hook Sewing Machine,8mm Stitch Horizontal Hook Sewing Machine |
||

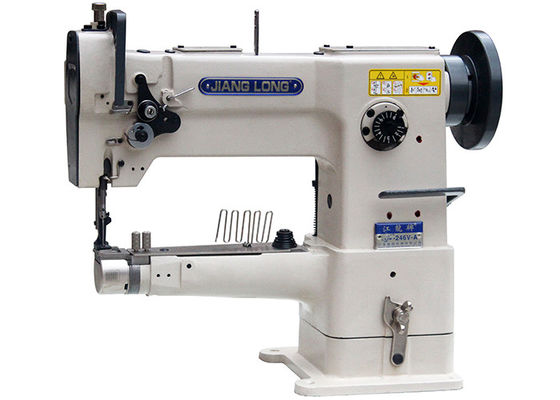

246 High - Precision Hemming Large Hook Leather Industrial Single Needle Sewing Machine
Product introduce
It is a thick leather sewing machine with a small cylindrical sewing table and a synchronous mobile hemming device. It can sew at high and low speeds with beautiful stitches. It is mainly used to sew leather products, like genuine leather, which can sew good results.
Product advantages
High-speed sewing, parts are made of high-precision, wear-resistant materials, which greatly increase the service life of the product.
Applications
Suitable for sewing leather clothes, leather goods, bags and piping in the production process of shoes, bags and cushions.
Product parameter
| Model | JL-246-VA |
| Product name | shoes making machine |
| Keyword | Industrial sewing machine for shoes |
| Presser foot lift | 8mm ( by hand) 12mm ( by knee ) |
| Voltage | 220V |
| Sewing Material | thick material |
Product details
Cylindrical cover
The cylindrical cover can protect the shuttle bed and the diameter of the mouth cover is 50mm
Back needle assembly
The design of the supporting seat of the inverted needle assembly is reasonable and optimized, which is convenient for machine maintenance and repair, and reduces the use cost of the factory.
Adjust presser foot lifting function
Adjust the height of the presser foot up and down by adjusting the position of the wing nut.
Pressure adjustment screw
Adjust the pressure of the small presser foot. When turning clockwise, the pressure will increase when sewing thick materials. On the contrary, when sewing thin materials, the pressure will decrease, so that the sewing material will not wrinkle.
Adjust the stitch length digital dial
The digital gauge dial is adjustable from 1-6 levels. The operator can easily rotate the dial to adjust the ideal gauge. Turn clockwise to shorten the gauge, and vice versa.
Edging board
This machine can be used for both open thread and edging. The edging structure is shown in the figure, and it can be used for edging when equipped with an edging cylinder.
