|Product Name:||Flat Bed Industrial Sewing Machine||Max. Sewing Speed:||800(r.p.m)|
|Max.Stitch Length:||0-11mm||Needle Size:||DY*3|
Thick Thread Lockstitch Sewing Machine,
420*200mm Heavy Duty Sewing Machine,
420*200mm Lockstitch Sewing Machine
Single Needle Thick Thread Lockstitch Heavy Duty Sewing Machine for Tent
This sewing machine is a heavy-duty thick thread lockstitch sewing machine with integrated feeder shuttle. It is a Hercules in the heavy-weight machine series. It adopts a three-synchronous integrated feeding system: needle feed dog and presser foot cross lifting mechanism to ensure Under any length stitch length within the rated range, sewing lubricity, viscous sewing material, the presser foot lift of this machine can reach 25mm, and the differential presser foot alternately can reach 10mm, ensuring that when the thickness of the fabric changes during the sewing process, For example, at the beginning of the seam or when sewing a cross seam, the presser foot can still be supplied smoothly and continuously.
It is the Hercules in the thick material machine series. The presser foot can be lifted up to 25mm, suitable for sewing extremely thick materials. The needle feeding dog and the presser foot cross lifting mechanism ensure that the upper and lower layers do not move when sewing lubricity, viscous sewing materials and special long products at any length within the rated range, so that the sewing products are neat and the stitches are beautiful.
Bag/sofa/tent/cushion/car interior, leather sewing, etc.
|product name||industrial sewing machine for thick materials|
|keyword||Automotive interior making machine|
|presser foot lift||13 mm ( by hand ) 25mm (by knee)|
reduce the number of bottom thread changes, improve work efficiency.
Pressure adjusting nut
Adjust the pressure of the large and small presser feet; turn clockwise to increase the pressure when sewing thick materials, which can make the machine feed stably and the stitch length is even; on the contrary, when sewing thin materials, reduce the pressure to make the sewing material without wrinkles.
Adjust the stitch length handle
The stitch length can be adjusted from 0 to 11mm, and it can be adjusted to the ideal stitch length by moving the handle up and down.

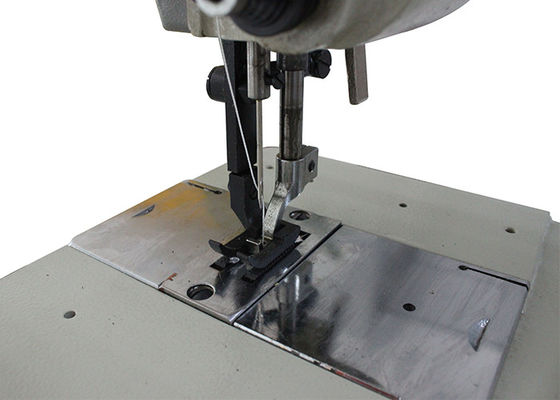

Presser foot + teeth + needle
Three synchronous car feeding, more suitable for sewing thick materials.
