Product Details:
|
| Product Name: | High Speed Sewing Machine | Number Of Needle: | Double Needle |
|---|---|---|---|
| Max. Sewing Speed: | 2200(r.p.m) | Max.Stitch Length: | 0-8.0mm |
| Diameter Of Cylinder Bed: | 65mm | Needle Size: | DP*17 (21#) |
| Hook: | Small Vertical Hook | Working Space: | 250×110mm |
| High Light: | 250×110mm Twin Needle Sewing Machine,65mm Cylinder Bed Sewing Machine,250×110mm Cylinder Bed Sewing Machine |
||

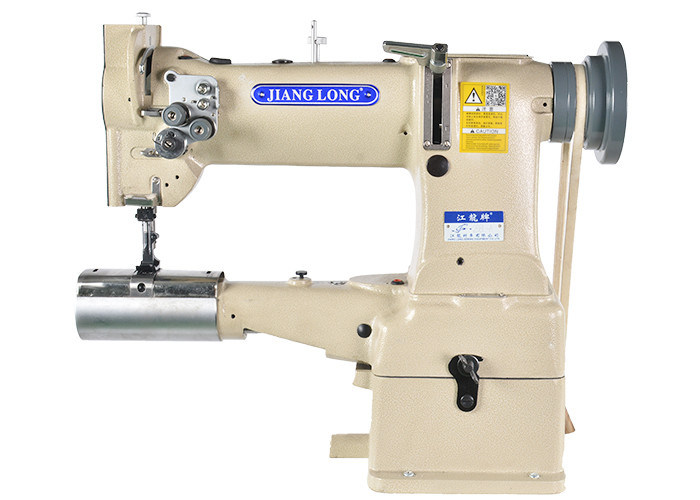

Industrial Compound Feed Supper Hook Twin Needle Sewing Machine For Thick Goods
Product introduce
This is a cylindrical double-needle sewing machine, the design of the large shuttle can be thicker, while reducing the number of times to replace the bottom thread. The machine adopts a fully automatic circulating oil supply lubrication system, which greatly reduces the loss of parts and reduces the noise generated during sewing. The surface is black-plated diamond tooth frame, which is more wear-resistant than ordinary tooth frame. This machine is equipped with optional clutch motor, electronic energy-saving motor (including fixed needle, adjustable speed)
Product advantages
The automatic oil supply design greatly reduces the loss of parts and reduces sewing noise. It adopts a large rotating shuttle design, a 28MM large bobbin reduces the frequency of changing the core, and the selection of spare parts is precise. The new black gold steel frame is adopted, which is durable.
Parameter of machine
| Model | JL-28BL-2A |
| Number of Needle | Double Needle |
| Max. Sewing Speed | 2200(r.p.m) |
| Max.Stitch Length | 0-8mm |
| Diameter of Cylinder Bed | 65mm |
| Presser foot lift | 8 mm (by hand)14 mm (by knee) |
| Needle size | DP*17 (21#) |
| Hook | Large Vertical Hook |
| Lubrication | Automatic lubrication |
| Working Space | 250*110mm |
| motor | Clutch Electric Motor, Electronic Energy-saving Machine |
| Mechanical Configuration | Cylinder-bed |
| Feed Mechanism | Compound Feed |
| Dimensions | 65.5*31*60.2cm |
| Color | White |
| N.W | 32KG |
Product case
It is suitable for the operation of handbags, toys, storage boxes, cosmetic boxes, bags and leather factories.
Product details
1. Inverted needle handle, this model adopts the stitch length adjustment and the reverse stitch structure to integrate, with beautiful appearance and reasonable structure, the length of the stitch length can be changed by adjusting the front and back of the nut, and the reverse stitching handle is pulled down to feed the reverse stitch.
2. Cylindrical mouth cover, the cylindrical protective cover can protect the shuttle bed, the diameter of the protective cover is 65mm.
3. The automatic circulating oil supply device is an improved type on the basis of traditional manual oiling. It is equipped with a high-pressure oil pump to automatically supply oil to all parts of the machine to achieve free lubrication of various parts, greatly increase the service life of the machine and reduce parts wear.
4. Double needle, double needle sewing can reduce sewing time and make stitches more beautiful.
