Product Details:
|
| Product Name: | Compound Feed Sewing Machine | Max. Sewing Speed: | 2200（r.p.m） |
|---|---|---|---|
| Max.Stitch Length: | 0-8mm | Diameter Of Cylinder Bed: | 50mm |
| Needle Size: | DP*17 (21#) | Hook: | Large Horizontal Hook |
| Lubrication: | Manual Lubrication | Working Space: | 500/600/800/1000mm × 110mm |
| High Light: | Long Arm Leather Sewing Machine,500mm Long Arm Sewing Machine,1000mm × 110mm Leather Sewing Machine |
||

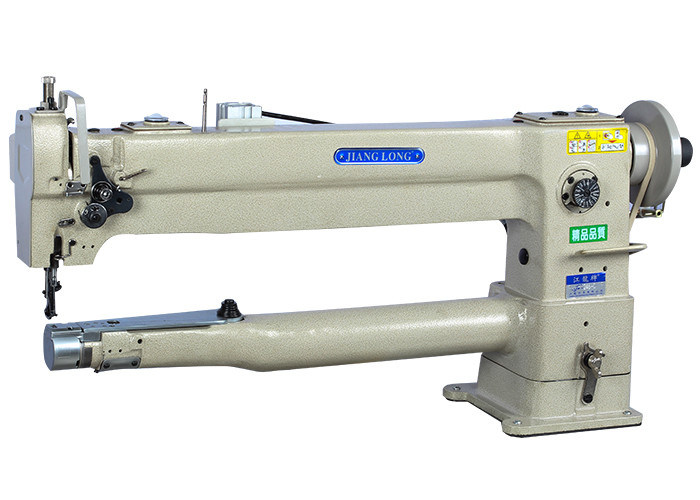

Single Needle Industrial Long Arm Compound Feed Sewing Machine For Leather
Product introduce
This is an ordinary long-length small-mouth sewing machine. It is a thick leather sewing machine, mainly for sewing leather products. The lengthened space can be selected according to the needs of your own products, and the arm length is available in various specifications (500mm, 600mm, 800mm, 1000mm)
Product advantages
The functions of hemming and open thread can be interchanged conveniently. The operation space is lengthened and the working area is larger, which can meet the sewing needs of more products.
Parameter of machine
| Model | 246V-C |
| Number of Needle | Single Needle |
| Max. Sewing Speed | 2200(r.p.m) |
| Max.Stitch Length | 0-8mm |
| Diameter of Cylinder Bed | 50mm |
| Presser foot lift | 8 mm (by hand) 12 mm(by knee) |
| Needle size | DP*17 (21#) |
| Hook | Large horizontal hook |
| Lubrication | Manual lubrication |
| Working Space | 500/600/800/1000*110mm |
| motor | Clutch Electric Motor, Electronic Energy-saving Machine |
| Mechanical Configuration | cylinder -bed |
| Feed Mechanism | Compound Feed |
| Dimensions | 65.5*31*60.2cm |
| Color | White |
| N.W | Customized |
Application case
Suitable for stitching and sewing at the bottom of ultra-long bags, such as special uniform bags, golf club bags, tubular musical instrument bags, extended shoes, etc.
Product details
1. Oil supply observation window, this oil observation window is designed in the fuselage, and the oil supply situation can be observed through this window.
2. Reverse stitch handle and reverse stitch handle are in a static state during sewing operation. If you need to reinforce the sewing material, press down the reverse stitch handle and the sewing material will be fed back.
FAQ
|
Q1. Is your company a factory or trading company? A. We are sewing machine factory, we focus on excellence sewing machine.
|
Q2. How about your machine quality? A. I cannot answer to you from our side. But our customer said to us our machine quality is good and use it about two years no change voice. After you use it, you will more understand our quality. |
|
Q3.How about your price? |
|
Q4. Can I buy one or two pieces? |
|
Q5. How can I get a quotation? A. First please give us your email address and which machine are your interesting.
|
