|Product Name:||Single Needle Sewing Machine||Max. Sewing Speed:||2200(r.p.m)|
|Max.Stitch Length:||0-8mm||Diameter Of Cylinder Bed:||47.5mm|
|Needle Size:||DP*17 (18#)||Hook:||Small Horizontal Hook|
|Lubrication:||Automatic Lubrication||Working Space:||260×103mm|
47.5mm Cylinder Bed Sewing Machine,
260×103mm Cylinder Bed Sewing Machine,
35KG Cylinder Bed Sewing Machine

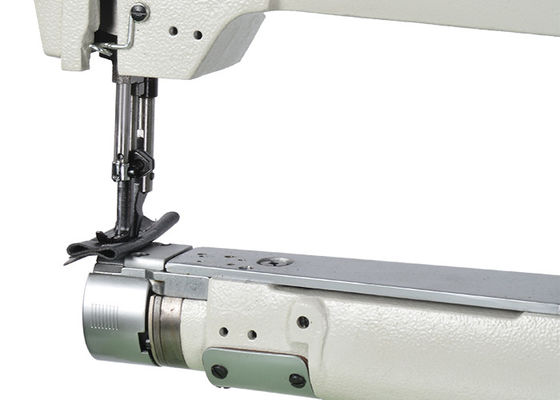

Cylinder Bed High Speed Walking Foot Compound Feed Lock Stitch Leather Sewing Machine
This is a sewing machine equipped with an automatic circulating oil supply and lubrication system. It adopts a small cylindrical sewing table and an elliptical feeding open thread operation, which can perform high and low speed sewing with uniform and beautiful stitches. Optional clutch motor, electronic energy-saving motor (including fixed needle, adjustable speed). It is a thick leather sewing machine, mainly for sewing leather products, like real leather, it can sew very good results.
This is an upgraded version of the JL-244 model machine, This machine uses high-precision, high-density, and high-wear-resistant parts to increase the stability and wear resistance of the machine, making the machine less likely to vibrate greatly during operation, ensuring smooth feeding and smooth sewing materials, and at the same time Increase the service life of the machine.
Parameter of machine
|Number of Needle||Single Needle|
|Max. Sewing Speed||2200(r.p.m)|
|Diameter of Cylinder Bed||47.5mm|
|Presser foot lift||8 mm (by hand) 12 mm (by knee)|
|Needle size||DP*17 (18#)|
|Hook||Small horizontal hook|
|motor||Clutch Electric Motor, Electronic Energy-saving Machine|
|Mechanical Configuration||cylinder -bed|
|Feed Mechanism||Compound Feed|
Suitable for all kinds of leather goods, ladies leather bags, car steering wheel covers, leather garment production, belts, wallets, etc.
1. The automatic circulating oil supply device is an improved version based on traditional manual oiling. It is equipped with a high-pressure oil pump to automatically supply oil to all parts of the machine to achieve free lubrication of all parts, greatly increase the service life of the machine and reduce parts wear.
2. The upper and lower transmission is connected to the crank, and the transmission shaft handle is optimized. The problem of heavy weight when the upper and lower linkage is reversed, strengthens the wear resistance of the parts.
3. The new feeding structure of lifting teeth, the improvement and optimization of the key feeding technology, due to the new type of balanced brackets, it solves the problems of unstable feeding, easy to wear, and easy breakage of the traditional top column lifting teeth, thus completely solving the needle Disadvantages such as the length of the pitch and broken needles greatly increase the aesthetics of the leather stitches.
Q1. Is your company a factory or trading company?
A. We are sewing machine factory, we focus on excellence sewing machine.
Q2. How about your machine quality?
A. I cannot answer to you from our side. But our customer said to us our machine quality is good and use it about two years no change voice. After you use it, you will more understand our quality.
Q3.How about your price?
Q4. Can I buy one or two pieces?
Q5. How can I get a quotation?
A. First please give us your email address and which machine are your interesting.
Contact Person: Charlie Luo
