Product Details:
|
Product Name: | Cylinder Bed Sewing Machine | Max. Sewing Speed: | 2200(r.p.m) |
---|---|---|---|
Max.Stitch Length: | 0-8mm | Diameter Of Cylinder Bed: | 47.5mm |
Needle Size: | DP*17 (18#) | Hook: | Small Horizontal Hook |
Lubrication: | Manual Lubrication | Working Space: | 260×103mm |
High Light: | 2200RPM Leather Sewing Machine,2200RPM Horizontal Hook Sewing Machine,220V Leather Sewing Machines |

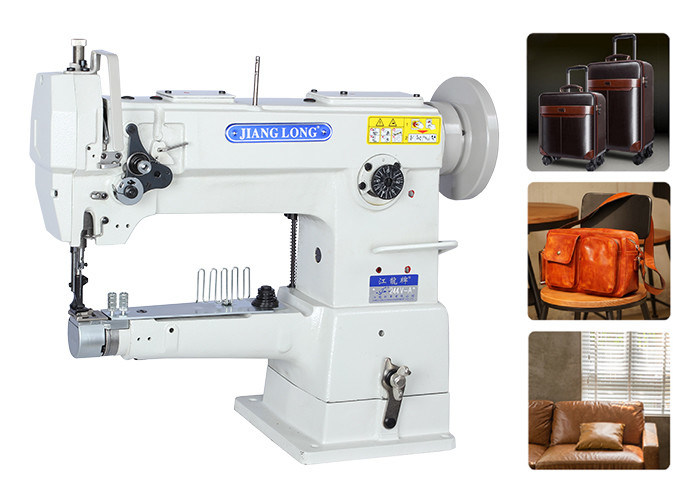

Single Needle Heavy Duty Compound Feed Industrial Leather Hemming Sewing Machine
Product introduce
This is a small shuttle small-mouth hemming sewing machine. It adopts a small cylindrical sewing table, horizontal feeding and hemming operation, and can be sewn at high and low speeds with uniform and beautiful stitches. Synchronous mobile hemming device, hemming operation can be carried out during the sewing process. It is also a medium-heavy leather sewing machine, which is mainly used for sewing leather products. It can sew very good results like genuine leather.
Product advantages
This is an upgraded version of the JL-244 model machine, with convenient interchangeability of hemming and open thread functions. This machine uses high-precision, high-density, and high-wear-resistant parts to increase the stability and wear resistance of the machine, making the machine less likely to vibrate greatly during operation, ensuring smooth feeding and smooth sewing materials, and at the same time Increase the service life of the machine.
Application case
Suitable for all kinds of leather goods, ladies leather bags, car steering wheel covers, leather garment production, belts, wallets, etc.
Parameter of machine
Model | JL-244V-A |
Number of Needle | Single Needle |
Max. Sewing Speed | 2200(r.p.m) |
Max.Stitch Length | 0-8mm |
Diameter of Cylinder Bed | 47.5mm |
Presser foot lift | 8 mm(by hand) 12 mm (by knee) |
Needle size | DP*17 (18#) |
Hook | Small horizontal hook |
Lubrication | Manual lubrication |
Working Space | 260×103mm |
motor | Clutch Electric Motor, Electronic Energy-saving Machine |
Mechanical Configuration | cylinder -bed |
Feed Mechanism | Compound Feed |
Dimensions | 57*27*62cm |
Color | White |
N.W | 35 kg |
Product details
1. The pressure adjusting nut adjusts the pressure of the large and small presser feet; turn clockwise to increase the pressure when sewing thick materials, which can make the machine feed stably and the stitch length is even; on the contrary, when sewing thin materials, reduce the pressure and make the sewing material unavailable. wrinkle.
2. Tooth frame fulcrum, the shock-absorbing spring of the tooth frame fulcrum can balance the tooth-feeding lever to achieve stable tooth-feeding.
3.Hemming device,The hemming can choose the width of single-return and double-return and the width of the hemming.
