Product Details:
|
Product Name: | Industrial Sewing Machine With Servo Motor | Max. Sewing Speed: | 2200(r.p.m) |
---|---|---|---|
Max.Stitch Length: | 0-8.0mm | Diameter Of Cylinder Bed: | 65mm |
Needle Size: | DP*17 (21#) | Hook: | Small Vertical Hook |
Lubrication: | Automatic Oil Injection | Condition: | New |
High Light: | 250×110mm Servo Motor Sewing Machine,220V servo motor sewing machine,Computerized servo motor sewing machine |

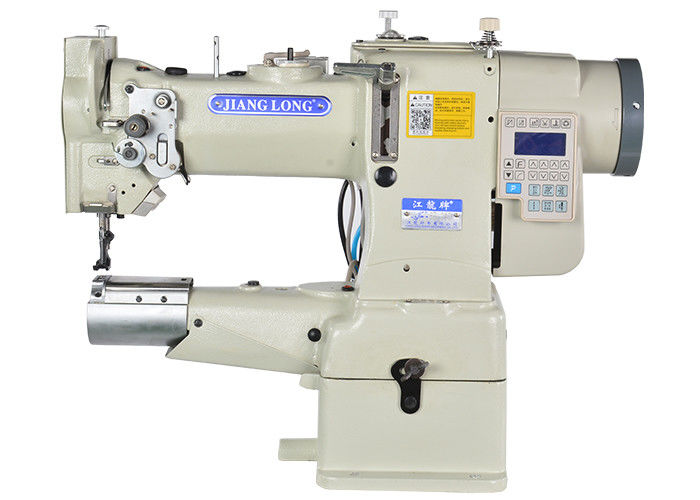

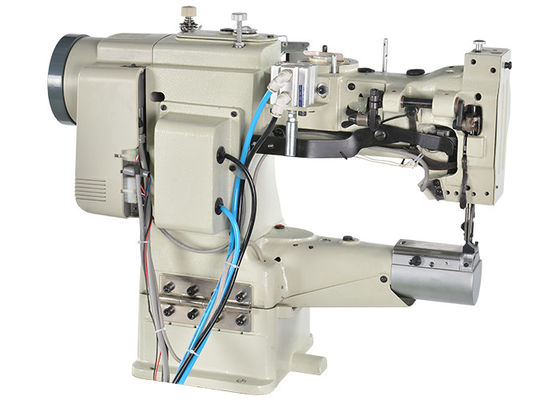

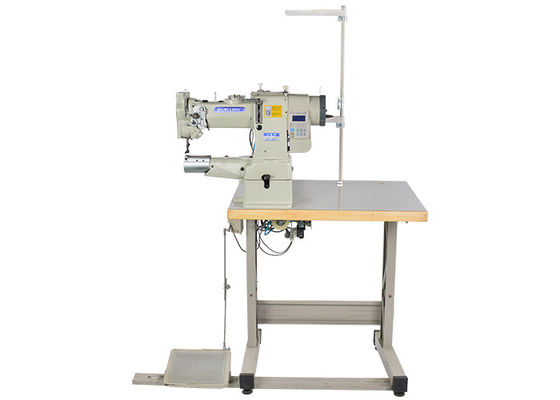

Computer Direct Drive Automatic Thread Trimming Single Needle Industrial Sewing Machine
Product introduce
This is a computer-driven automatic thread trimming cylinder type comprehensive feeding sewing machine, which adopts a conjoined upper and lower feeding mechanism and an alternate presser foot lifting mechanism to ensure smooth feeding.
Product advantages
Using powermax brand electric control system, easy to operate and improve work efficiency.
Use automatic lubrication device to save personnel height and improve production efficiency.
Using a large shuttle design, the diameter of the large bobbin thread core is 28mm.
Product parameter
product name | cylinder bed industrial sewing machine |
keyword | Automatic sewing machine |
presser foot lift | 8mm (by hand ) 14mm (by knee ) |
voltage | 220V |
working space | 250×110mm |
motor | Servo Direct Drive Motor |
Product details

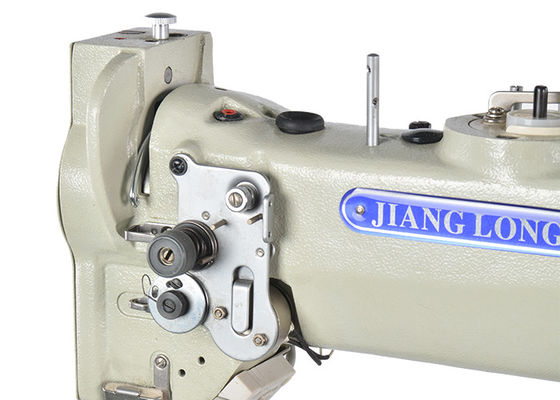

Back needle handle
The machine adopts the stitch length adjustment and the reverse seam structure to integrate, the appearance is beautiful, the structure is reasonable, the length of the stitch length can be changed by adjusting the front and back of the nut, and the reverse seam feeds when the reverse seam handle is pulled down.
Parametric screw
The lateral screw can fix the edging tube frame.
