Product Details:
|
Product Name: | Single Needle Industrial Sewing Machine | Max. Sewing Speed: | 2200(r.p.m) |
---|---|---|---|
Max.Stitch Length: | 0-8.0mm | Diameter Of Cylinder Bed: | 65mm |
Needle Size: | DP*17 (21#) | Hook: | Small Vertical Hook |
Lubrication: | Manual Lubrication | Condition: | New |
High Light: | 750W Manual Lubrication Sewing Machine,2200RPM Manual Lubrication Sewing Machine,2200RPM Cylinder Bed Sewing Machine |

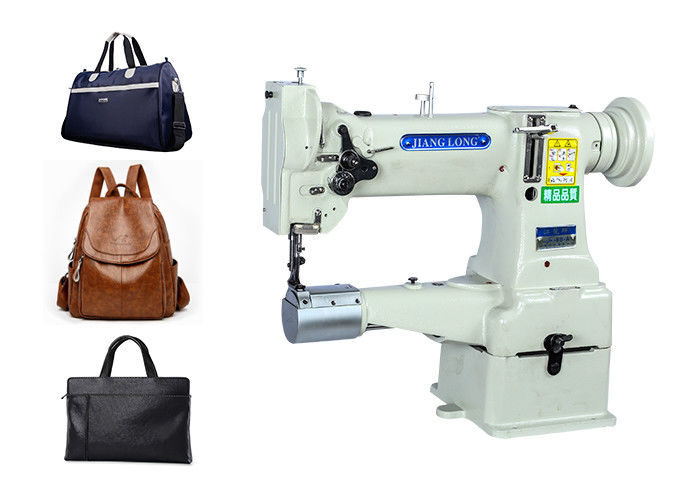

Industrial 8B Cylinder Bed Sewing Machine High Speed Hand Bag Sewing Machine
Product introduce
This is a cylinder type thick material lockstitch sewing machine specially designed for luggage manufacturing. It has a solid structure and a novel shape.
The sliding rod is used to take up the thread to form a double-thread lock stitch, and the upper and lower shafts are driven by a synchronous toothed belt.
Presser foot, feeding cloth, synchronous needle feeding, lever type stitch length adjustment structure.
The stroke of the high-pressure foot, the high-pressure foot lifts the gap and the large stitch length, to match the cylindrical sewing table.
Product advantages
It is made of high-precision, high-wear-resistant materials to increase its stability, wear-resistant type, and improve the service life of the machine
Product case
Suitable for the surrounding operations of heavy bags, suitcases and mattresses.
Product parameter
product name | thick leather sewing machine |
keyword | leather hand bag sewing machine |
presser foot lift | 8mm (by hand ) 14mm (by knee ) |
voltage | 220 V |
motor | Clutch Electric Motor, Electronic Energy-saving Machine(Including with Fixed Needle, Adjustable Speed) |
working space | 250×110mm |
Product details
Parametric screw
The lateral screw can fix the edging tube frame.

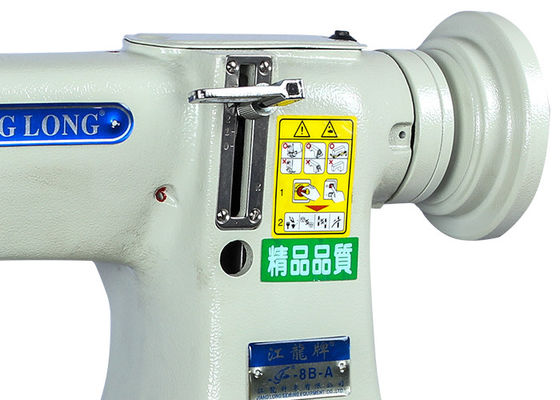

Back needle handle
The machine adopts the stitch length adjustment and the reverse seam structure to integrate, the appearance is beautiful, the structure is reasonable, the length of the stitch length can be changed by adjusting the front and back of the nut, and the reverse seam feeds when the reverse seam handle is pulled down.

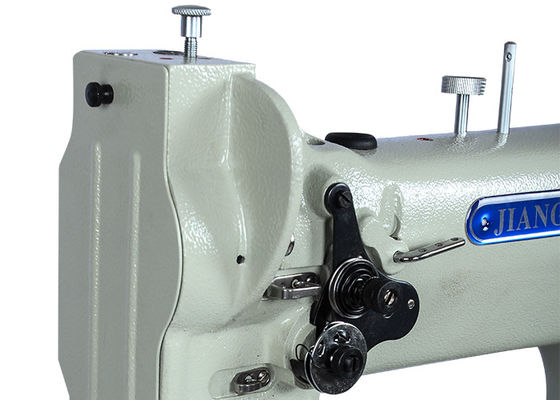

Thread clamp
Adjust the tension of the upper thread.

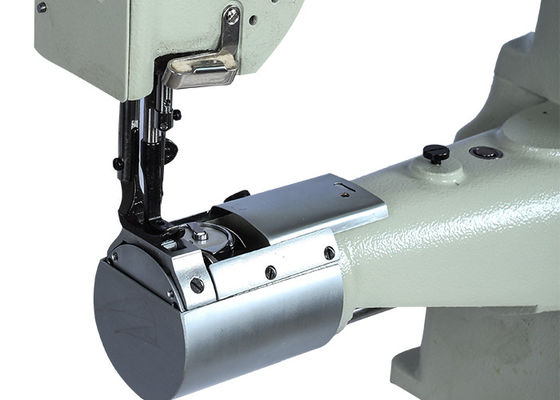

Vertical shuttle
The hook tip hooks the thread loop while expanding the thread loop and guides the thread around the bobbin to form a lock stitch.
Adjust presser foot lifting function
Adjust the height of the alternate feeding of the presser foot by the position of the wing nut.
